XL Closed-Loop Timing Belt — Reliable Pitch 5.08mm Drive for 3D Printers & CNC Machines

When a slipping or stretched drive belt causes your 3D printer to skip layers or your CNC router to lose position mid-cut, the fix starts with the right closed-loop timing belt. Makers, machine builders, and repair technicians who need a drop-in replacement or an upgrade for their XL-profile drive system will find the exact size here — with 195 model options covering perimeters from 106.68mm (≈4.2") to 2997.2mm (≈118").

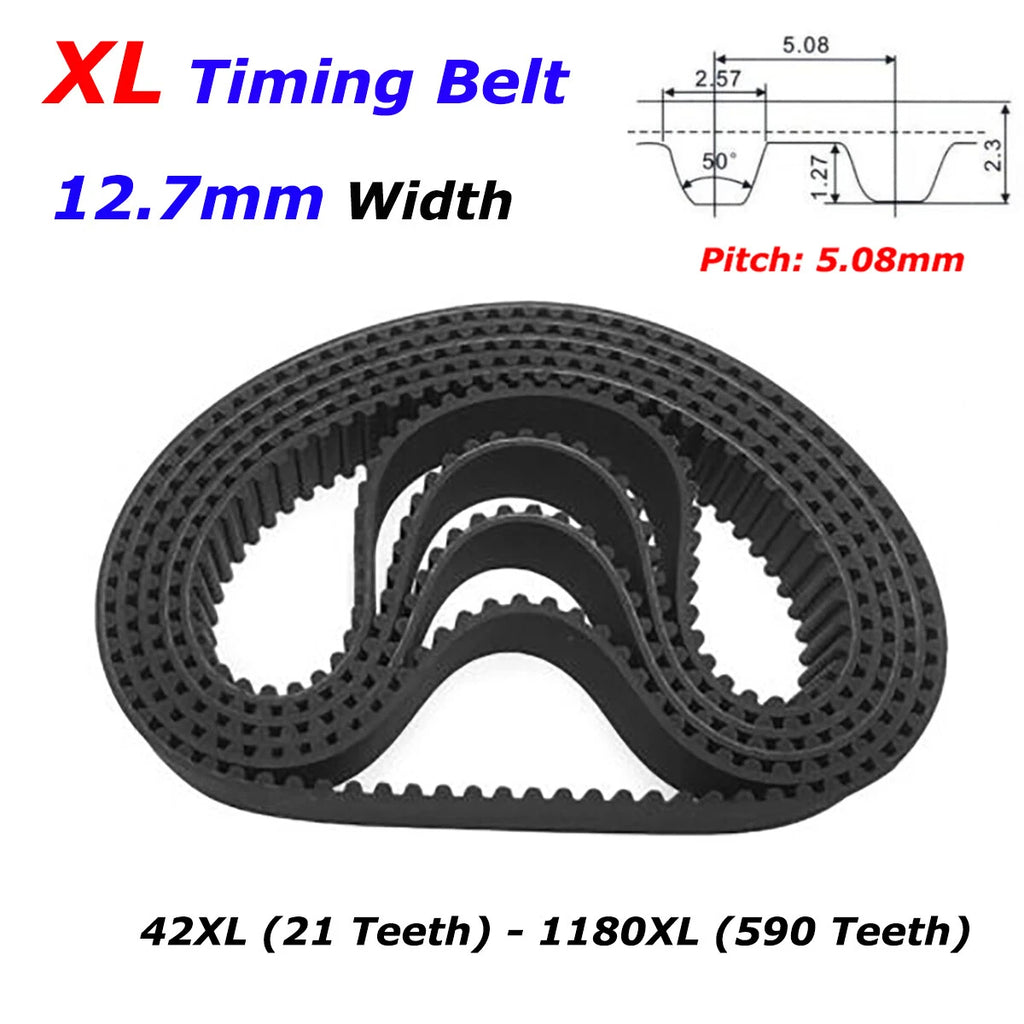

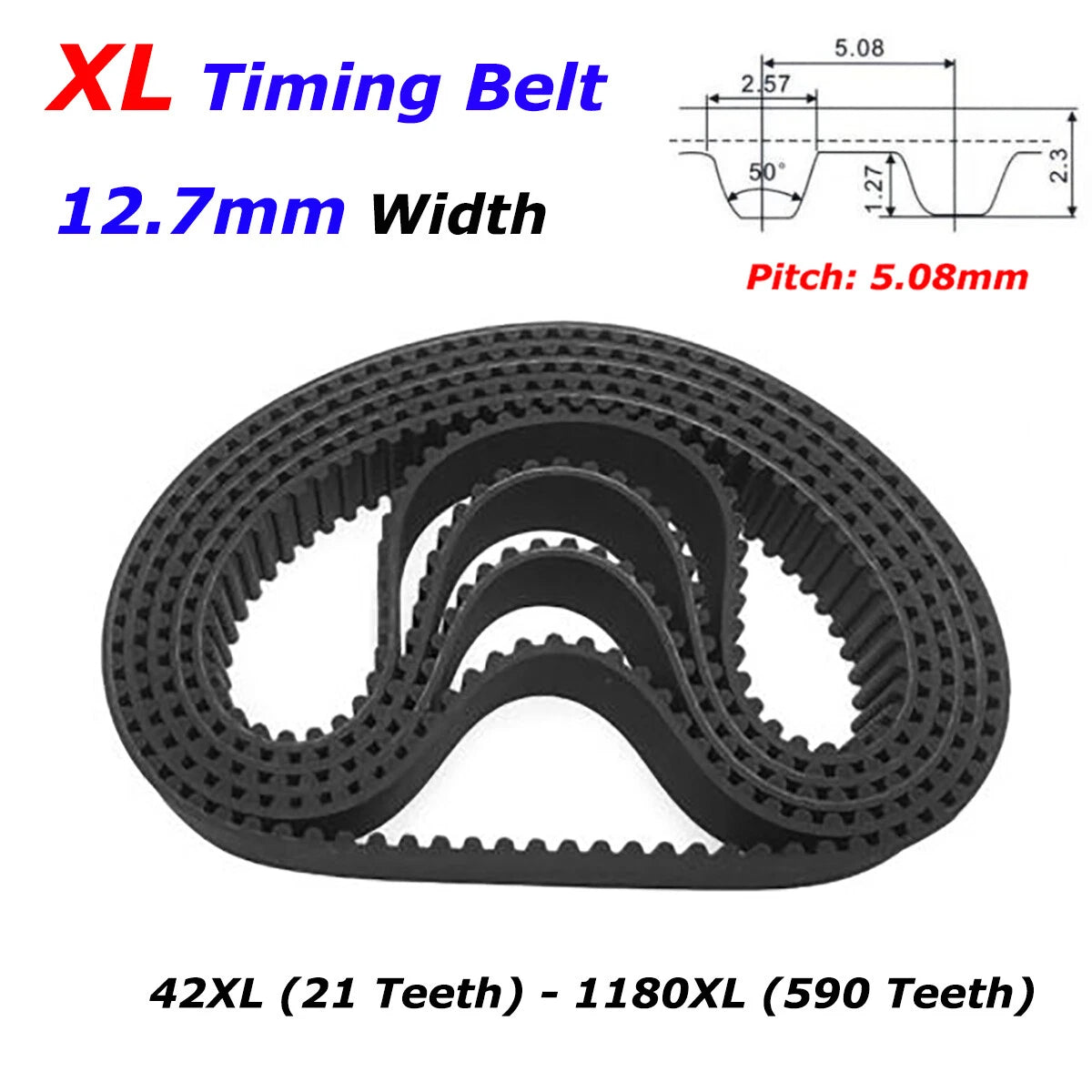

Each belt is a single closed-loop (endless) unit sold individually (1 PCS per order). The XL profile features a tooth pitch of 5.08mm (0.2") and a belt width of 12.7mm (1/2"). The body is typically constructed from neoprene or polyurethane with fiberglass or steel cord reinforcement for dimensional stability under load. Select your model number from the variant dropdown — each option lists the tooth count and exact perimeter in mm so you can match your existing belt or pulley specification precisely.

Common applications include Cartesian and CoreXY 3D printer axis drives, CNC router gantry and Z-axis drives, laser engraver carriage systems, and light-duty automation conveyor loops where a synchronous XL timing belt replacement is needed.

ℹ️ Compatibility: Fits any standard XL-profile pulley or sprocket with a 5.08mm (0.2") tooth pitch and 12.7mm (1/2") groove width. Not compatible with MXL, L, T5, GT2, or 2GT profile pulleys. Verify your pulley profile before ordering.
⚠️ Size confirmation tip: Before ordering, measure your existing belt's outer perimeter or count its teeth. Each XL tooth = 5.08mm. Cross-reference with the model number in the variant selector (e.g., 100XL = 50 teeth, 254mm perimeter).

✅ Key Features of These XL Closed-Loop Timing Belts

  • 🔁Endless Closed-Loop Construction — No splice or joint; the seamless loop runs smoothly over pulleys without vibration spikes at a seam, which is critical for dimensional accuracy in 3D printer XL belt drive systems.
  • 📐XL Standard Tooth Profile (5.08mm Pitch) — Conforms to the XL (Extra Light) synchronous belt standard, ensuring positive engagement with any XL-profile pulley and zero-slip motion transfer for CNC router timing belt applications.

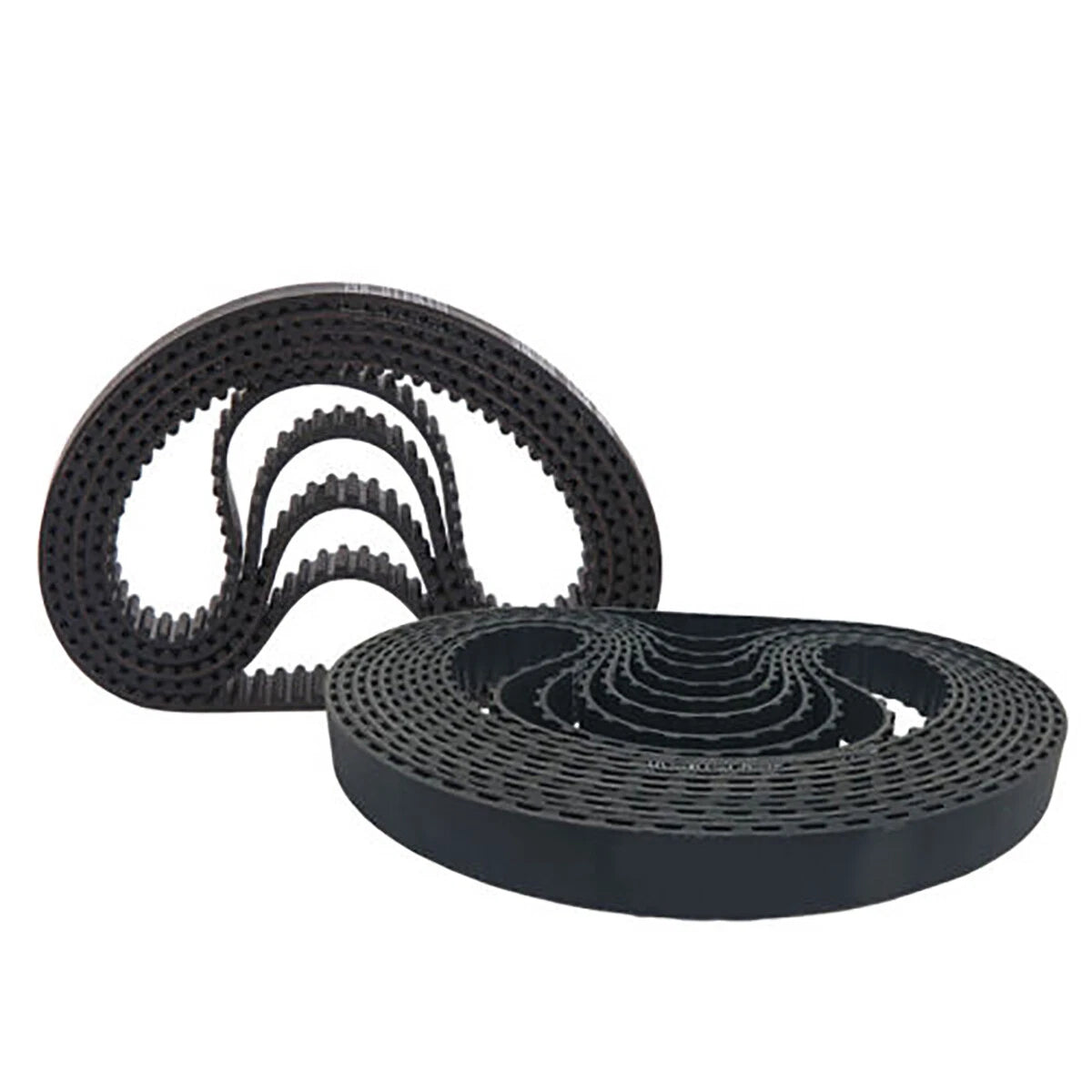

  • 📏195 Sizes in One Listing — From 42XL (106.68mm / ≈4.2") to 1180XL (2997.2mm / ≈118"), covering virtually every desktop and mid-size machine that uses a 12.7mm XL closed-loop drive belt.
  • 🧵Cord-Reinforced Body — Internal tensile cords (typically fiberglass or steel) resist elongation under cyclic load, maintaining consistent tooth pitch over time — important for repeatable positioning in automation and laser engraver belt drives.
  • ⚙️12.7mm (1/2") Standard Width — Matches the most common XL pulley flange width used in desktop CNC machines, 3D printers, and light conveyor systems, making this a direct replacement without pulley modification.
  • 🚚Ships from US Warehouse — Stocked domestically for faster delivery to US customers, reducing wait time when a machine is down and a replacement XL timing belt is needed urgently.

📐 Technical Specifications — XL Closed-Loop Timing Belt

Belt Type XL (Extra Light) Synchronous Timing Belt
Loop Type Closed-Loop (Endless / No Splice)
Tooth Pitch 5.08mm (0.200")
Belt Width 12.7mm (1/2")
Tooth Profile XL trapezoidal
Available Models 42XL – 1180XL (195 sizes; see variant selector)
Perimeter Range 106.68mm (≈4.2") to 2997.2mm (≈118")
Teeth Count Range 21 teeth (42XL) to 590 teeth (1180XL)
Body Material See variant options (typically neoprene or polyurethane)
Tensile Cord See variant options (typically fiberglass or steel)
Quantity per Order 1 PCS
Compatible Pulley Profile XL (5.08mm pitch, 12.7mm width)
Typical Applications 3D printer axis drive, CNC router gantry, laser engraver carriage, light automation
Operating Temperature Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right XL timing belt size for my machine?

Count the number of teeth on your existing belt, or measure its outer perimeter. Each XL tooth is 5.08mm (0.2"), so multiply tooth count by 5.08 to get the perimeter in mm. Alternatively, use the formula: perimeter ≈ 2 × center distance + (π × pulley pitch diameter). Match the result to the model number in the variant selector — each option shows tooth count and perimeter in mm. For example, a 100XL belt has 50 teeth and a perimeter of 254mm (≈10"). When replacing a worn belt, size up by 2–4 teeth if you have a tensioner to take up slack.

What tensile load can this 12.7mm XL belt handle?

At 12.7mm width, XL timing belts typically carry working tensile loads in the range of 100–200 N, though the exact rating depends on cord material and construction. For desktop 3D printers and light CNC routers, this is generally well within the required range. For servo-driven or high-speed CNC axes, verify the specific belt's rated working tension against your application's peak load requirements before ordering.

Can I use this belt outdoors or in a wet/dusty environment?

Standard XL timing belts are generally suitable for indoor, dry environments. The neoprene or polyurethane body resists light incidental moisture, but prolonged UV exposure, standing water, or chemical splash can degrade the belt material over time. For outdoor, washdown, or chemically aggressive environments, contact us to confirm suitability or inquire about polyurethane-body belts with stainless steel tensile cords.

Is this belt compatible with my existing XL pulleys and sprockets?

Yes — this belt uses the XL (Extra Light) standard tooth profile with a 5.08mm (0.2") pitch and 12.7mm (1/2") width. It will engage correctly with any XL-profile pulley or sprocket of the same width. It is not interchangeable with MXL (2.032mm pitch), L (9.525mm pitch), T5, GT2, or 2GT profile pulleys. Always confirm your pulley's profile designation before ordering.

How do I read the model number to find the right belt?

The number before "XL" is the belt's ANSI designation. For XL belts, the perimeter in tenths of an inch equals the designation number × 2. So a 100XL has a perimeter of 100 × 0.2" = 20" (508mm) with 100 ÷ 2 = 50 teeth. The variant dropdown in this listing also shows the tooth count and perimeter in mm directly, so you can match by either measurement system.

What is the difference between a closed-loop belt and an open-end belt?

A closed-loop (endless) belt is a continuous loop with no seam — it installs directly over two or more pulleys in a fixed-center drive. An open-end belt is sold by the foot and requires cutting and joining with a connector or clamp. This listing sells closed-loop belts only. If your machine uses an open-end belt clamped to a carriage (common on some 3D printers), you will need an open-end XL belt instead.

How do I know if I need a 12.7mm-wide belt or a different width?

Measure the width of the groove on your existing pulley or the width of your current belt. The 12.7mm (1/2") width is the most common for desktop 3D printers and light CNC machines using XL-profile drives. If your pulley groove is wider (e.g., 19mm or 25.4mm), you will need a wider belt. Mixing belt width and pulley width will cause the belt to track off-center and wear prematurely.
