Description

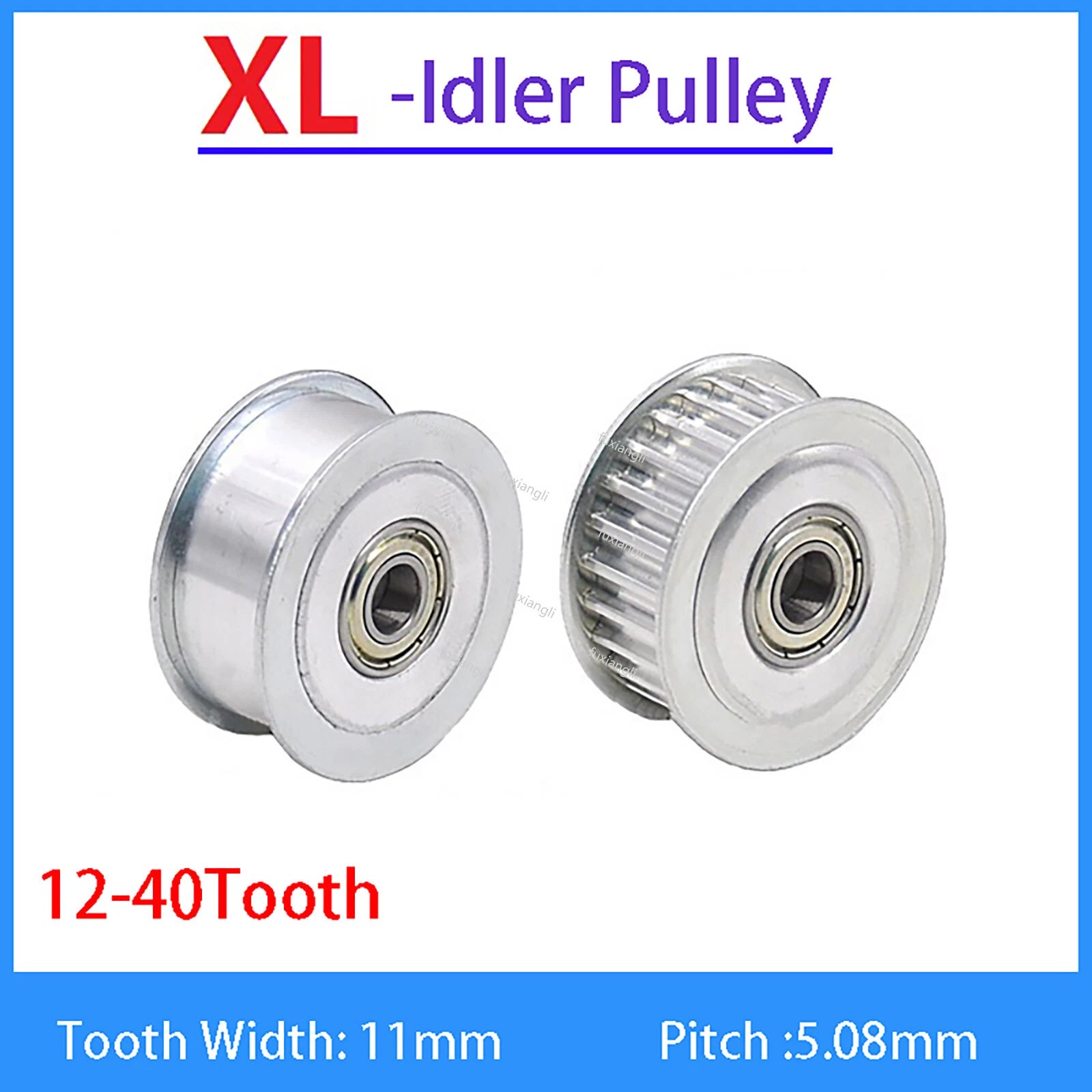

XL Timing Belt Idler Pulley — Smooth Belt Guidance for Precision Drive Systems

When a timing belt slips, vibrates, or tracks unevenly, the entire drive system suffers — missed steps, accelerated wear, and noisy operation. For builders of 3D printers, CNC routers, and automation assemblies who need dependable belt tension and alignment, a dedicated XL timing belt idler pulley with an integrated bearing eliminates those issues by maintaining consistent belt path and tension.

These XL-series idler pulleys feature a precision-machined aluminum alloy body with a sealed double-side bearing pressed into the hub, providing smooth rotation with minimal friction. The pulleys are available in 12-tooth, 15-tooth, and 16-tooth configurations, with both smooth-tooth (toothless) and toothed profiles. Compatible belt widths range from 3mm to 9mm (0.12"–0.35"), and the overall pulley width accommodates belts up to 11mm (0.43"). The XL pitch standard of 5.08mm (0.200") ensures compatibility with standard XL timing belts.

These idler pulleys are ideal for tightening slack in RepRap and custom 3D printer belt drives, where consistent tension on the X and Y axes directly affects print dimensional accuracy. They also serve as tensioner pulleys in CNC gantry systems and laser engraver belt drives, maintaining belt engagement under rapid direction changes. For DIY robotics and linear motion projects, the double-side bearing design supports bidirectional belt travel without lateral drift.

🔗 Compatible with standard XL pitch (5.08mm / 0.200") timing belts. Select the tooth profile and belt width that match your drive system.

✅ Key Features of These XL Timing Belt Idler Pulleys

🔧

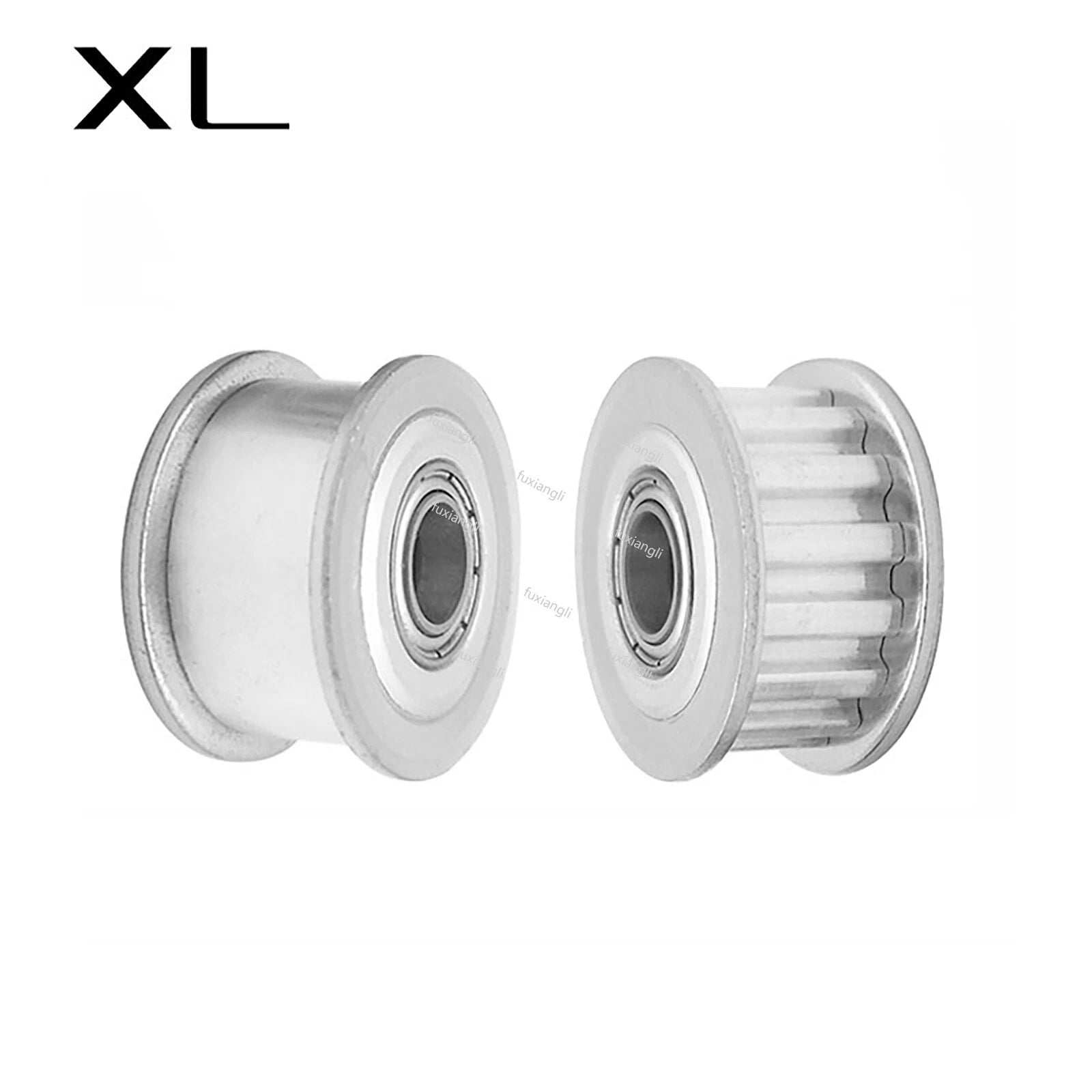

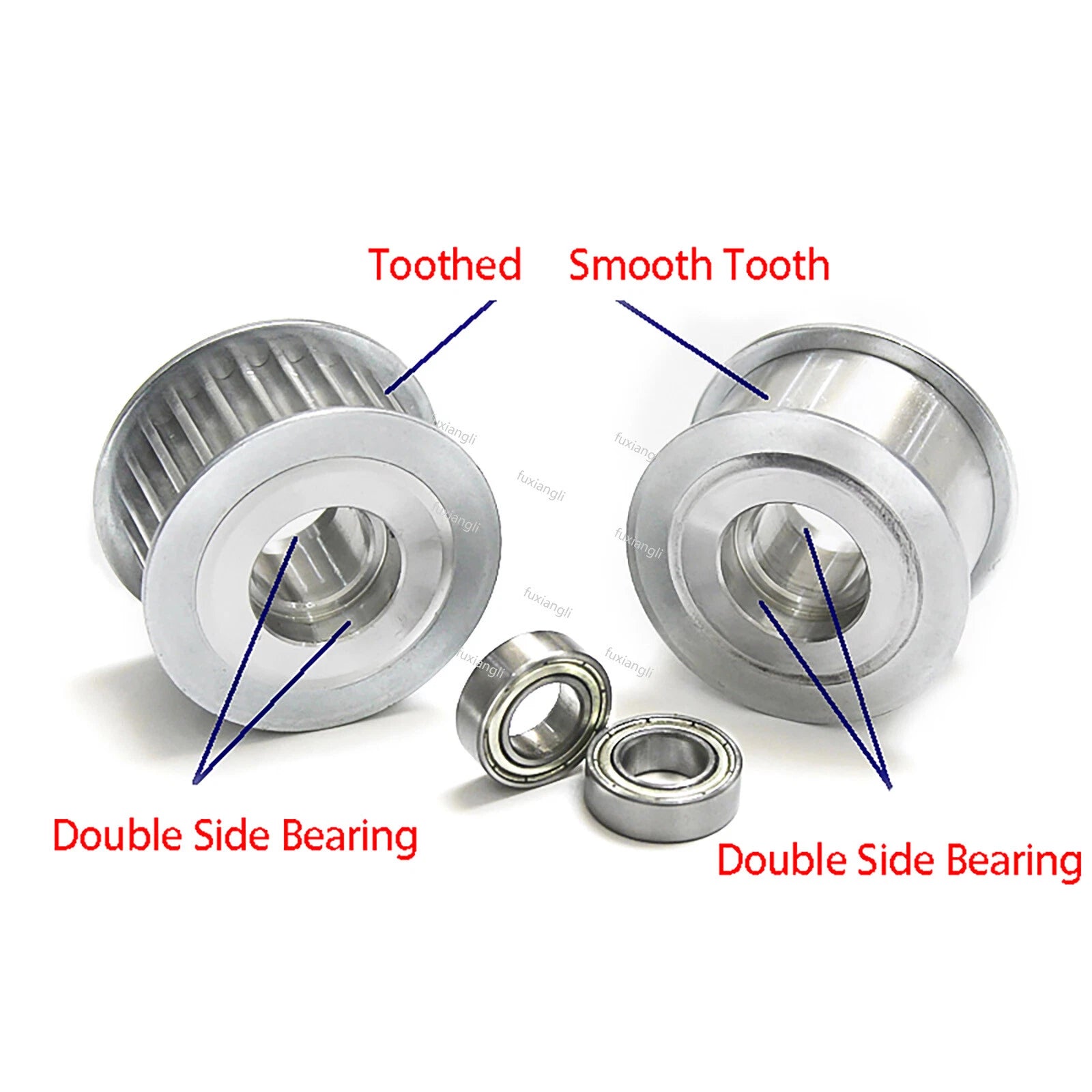

Dual Profile Options

Available in smooth-tooth (toothless) for flat-back belts and toothed for positive engagement with XL timing belts.

⚙️

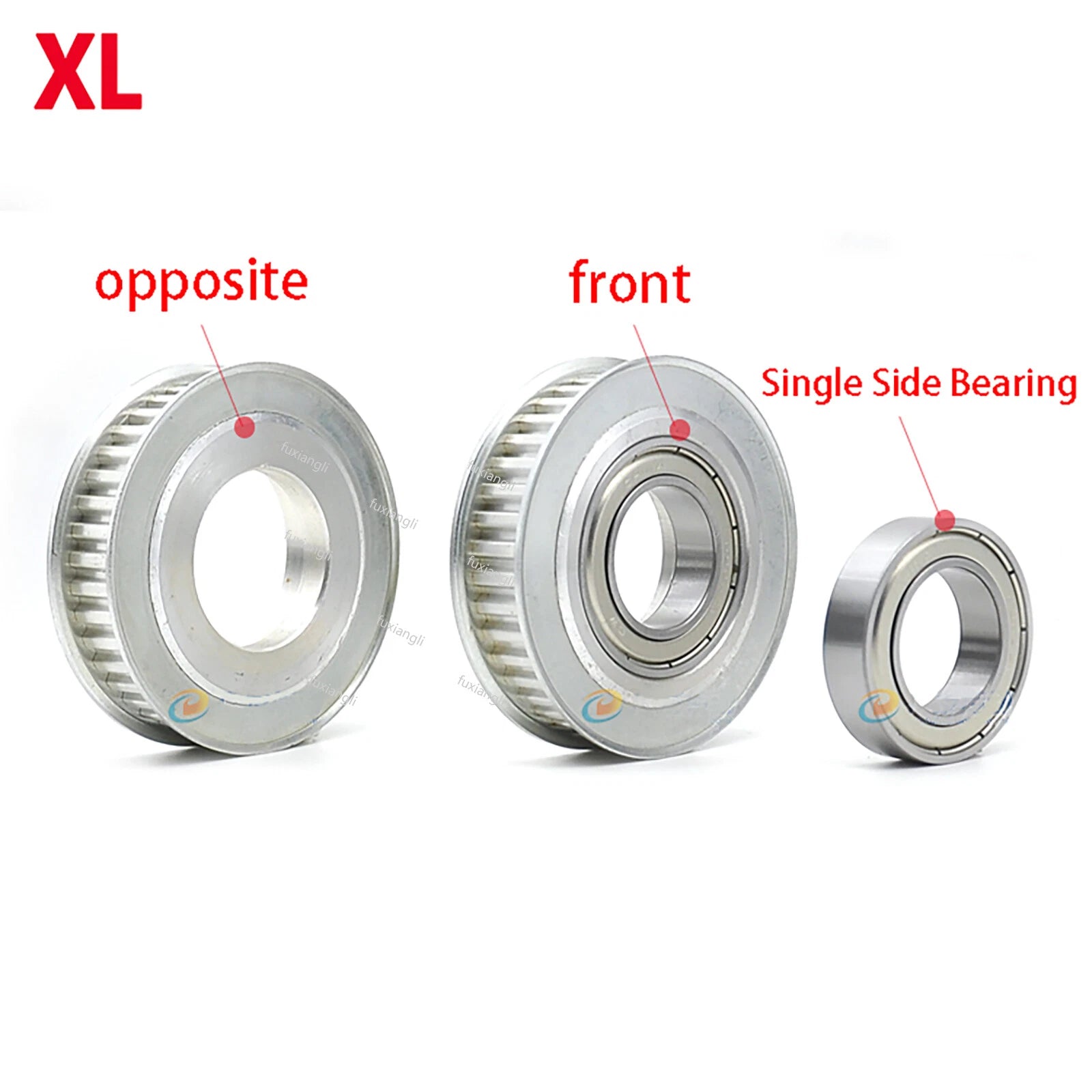

Sealed Double-Side Bearing

Pre-installed bearing with dual seals keeps lubricant in and contaminants out for long service life.

📐

Multiple Tooth Counts

12T, 15T, and 16T options let you tune belt wrap angle and tensioner geometry for your specific build.

📏

Belt Width Range

Supports belt widths from 3mm to 9mm (0.12"–0.35"), covering common XL belt sizes used in desktop machines.

🛡️

Aluminum Alloy Construction

Lightweight yet rigid pulley body resists deformation under belt tension and repeated load cycles.

🔄

Bidirectional Operation

Double-side bearing design accommodates reversing belt travel without play or lateral movement.

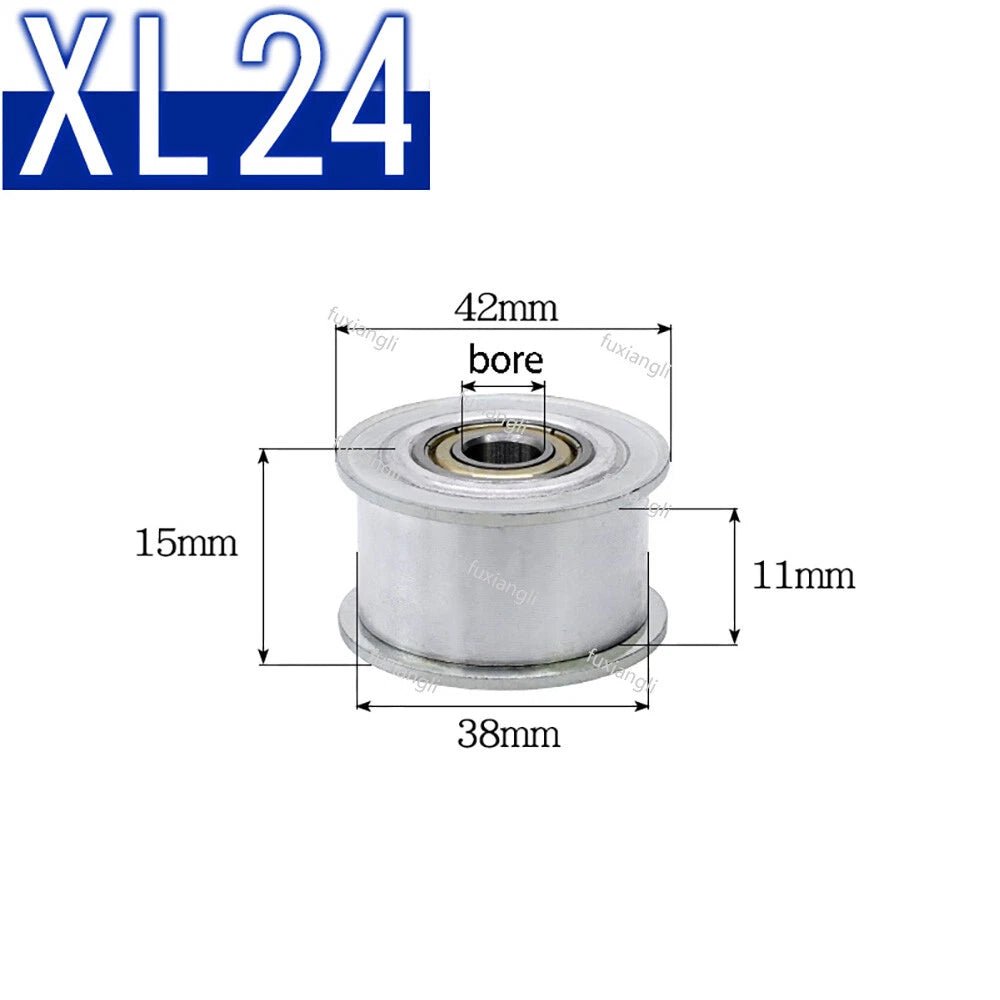

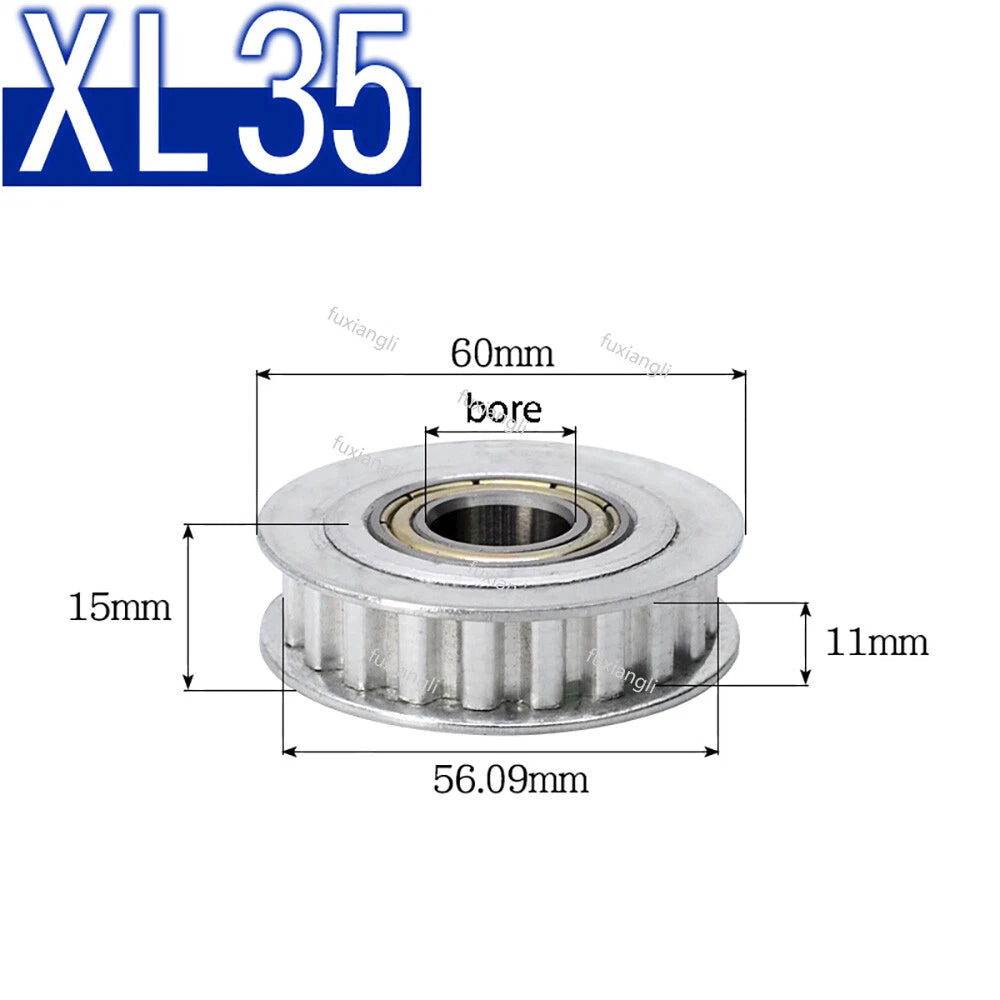

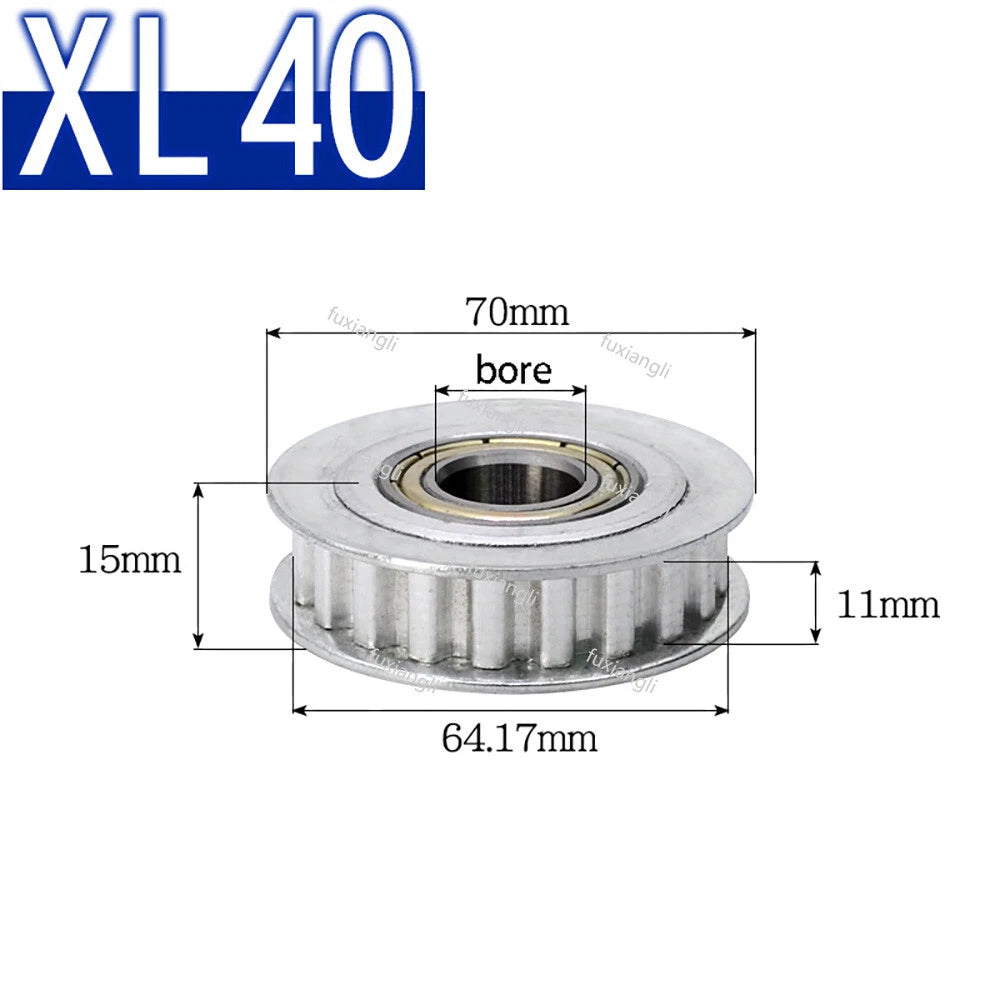

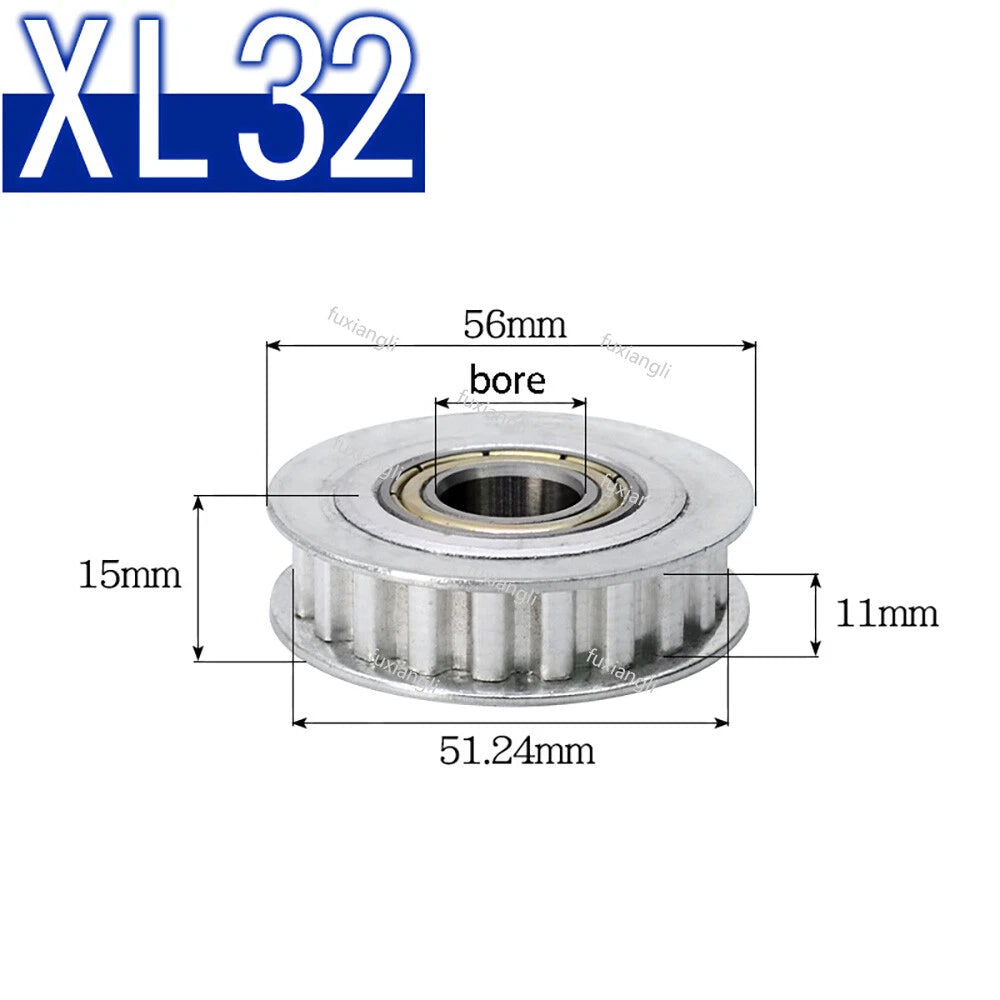

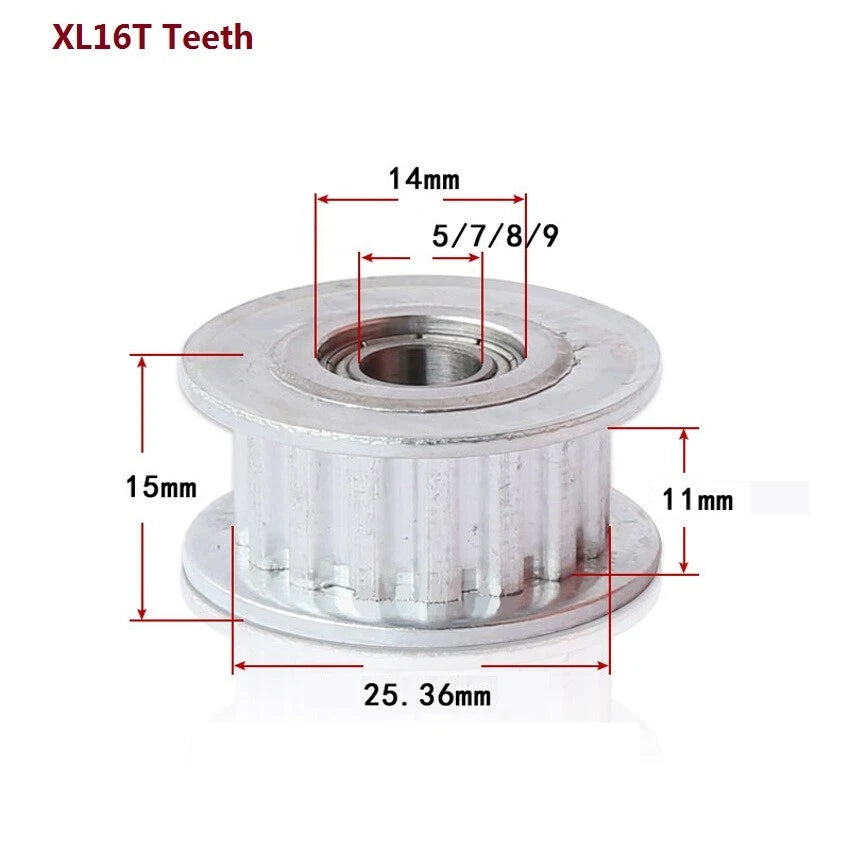

📐 Technical Specifications — XL Idler Pulley

Belt Series XL (5.08mm / 0.200" pitch)

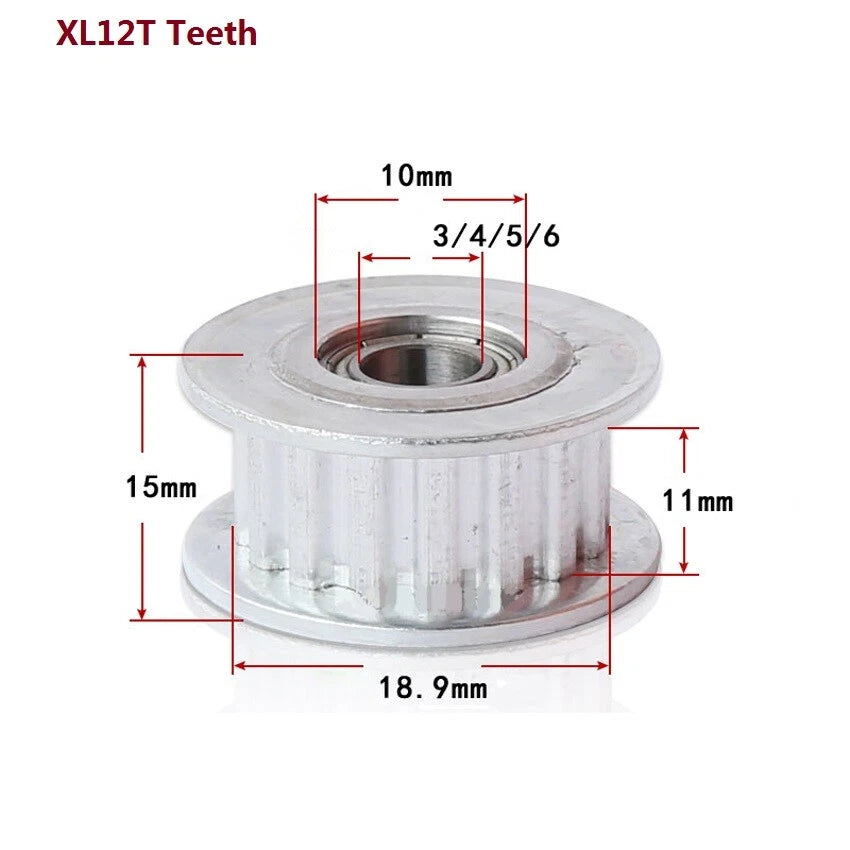

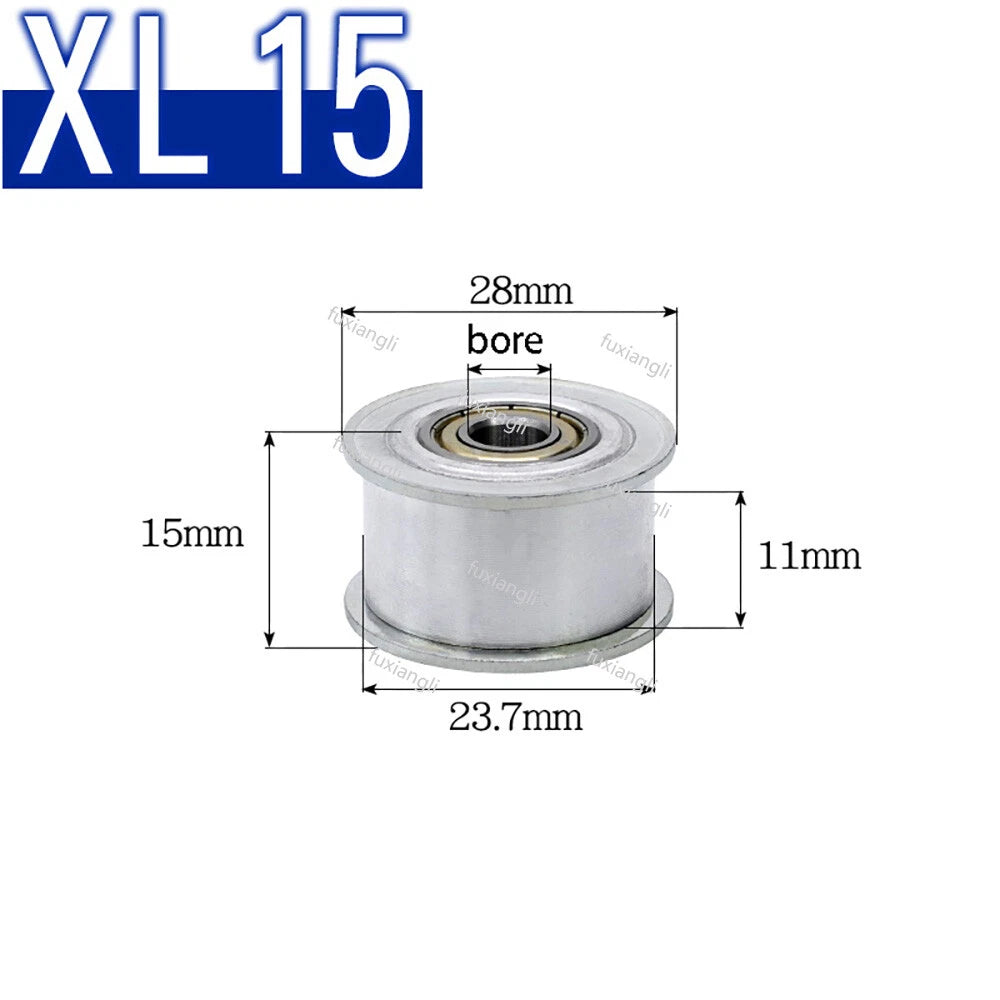

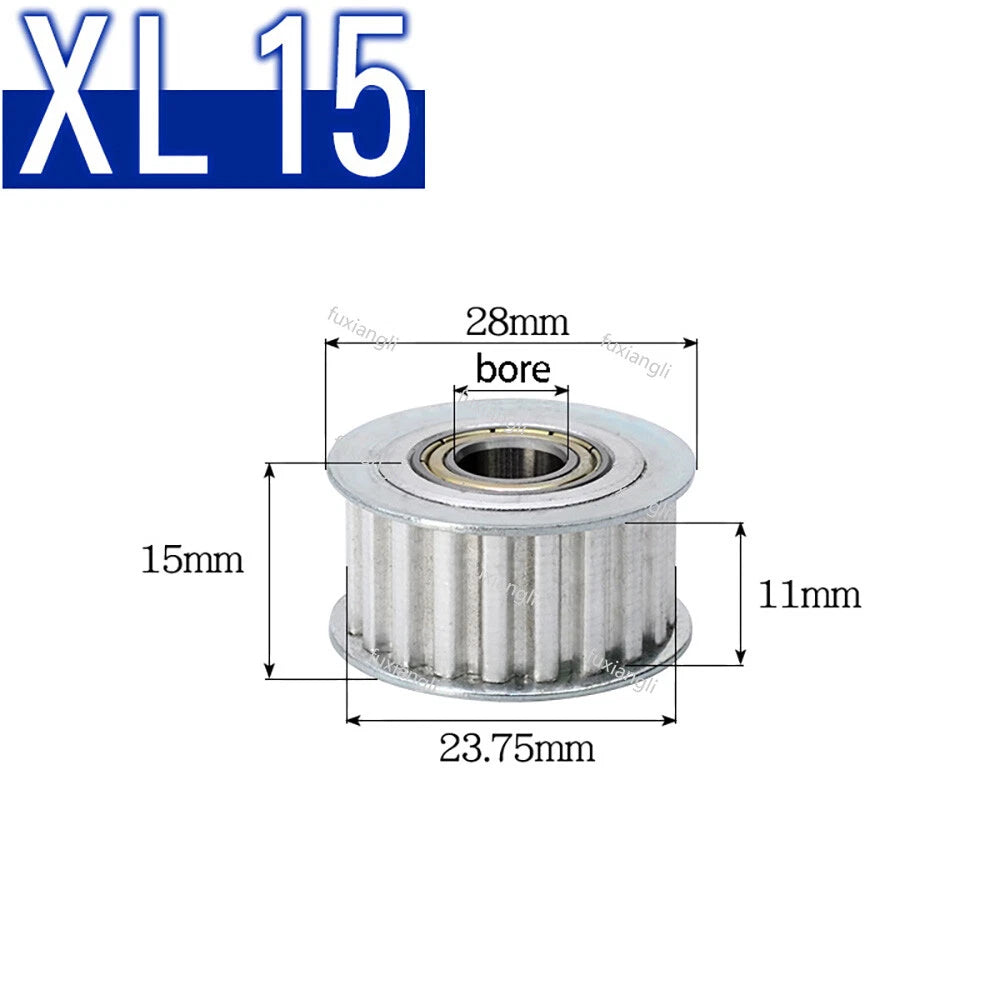

Tooth Counts Available 12T, 15T, 16T
Tooth Profiles Smooth Tooth (Toothless), Toothed
Belt Width Range 3mm–9mm (0.12"–0.35")
Max Pulley Width 11mm (0.43")
Bearing Type Sealed double-side ball bearing
Pulley Material Aluminum alloy
Bearing Configuration Double side bearing
Quantity Per Pack 1 piece
Pitch Diameter See variant options
Outer Diameter See variant options
Bore Diameter See variant options
Weight See variant options

❓ Frequently Asked Questions

How do I choose the right tooth count (12T, 15T, or 16T) for my build?

Tooth count affects the pulley's outer diameter and the belt wrap angle. A 12T pulley has a smaller diameter, making it compact for tight spaces, while 15T and 16T pulleys offer a larger contact area for improved belt engagement. Choose based on your available space and the tension geometry of your drive system.

What is the difference between smooth tooth and toothed pulleys?

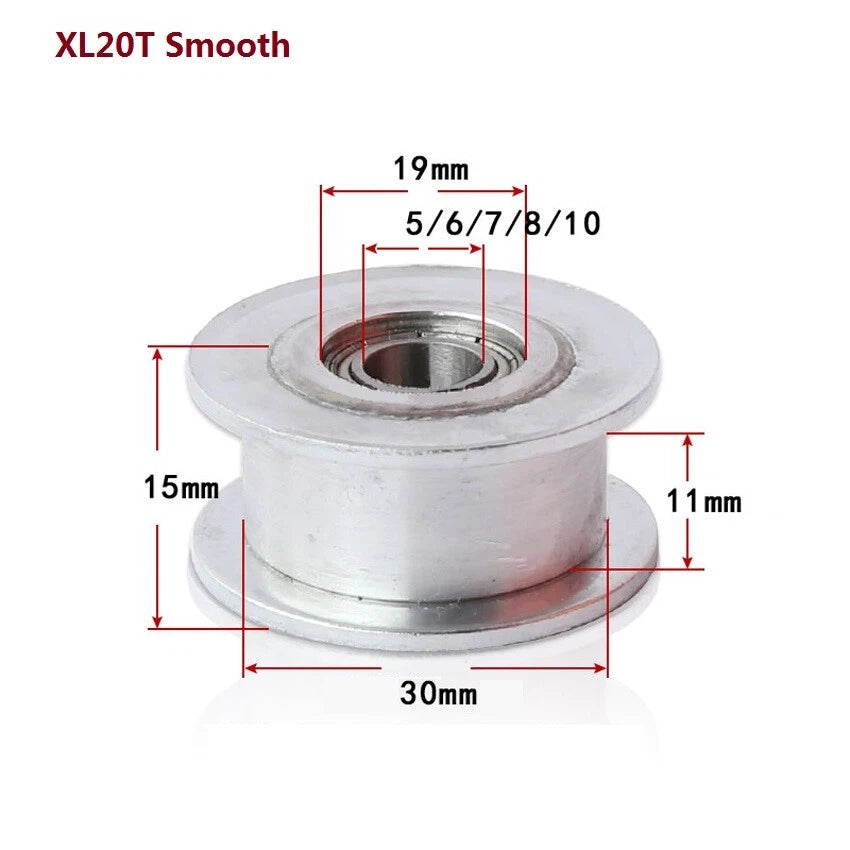

Smooth tooth (toothless) pulleys have a flat surface that contacts the back of the timing belt, making them suitable as idler or tensioner pulleys where the toothed side of the belt faces away. Toothed pulleys have matching teeth that engage directly with the belt's tooth profile, providing positive synchronization and preventing belt slip.

Will these pulleys work with my XL timing belt?

Yes, these pulleys are designed for XL-series timing belts with a 5.08mm (0.200") pitch. The toothed variants have teeth that match the XL tooth profile for positive engagement. Verify your belt width falls within the available range of 3mm to 9mm.

What belt widths are supported?

These pulleys are available in belt width options from 3mm to 9mm (0.12"–0.35"). Select the width that matches or slightly exceeds your timing belt width to ensure proper tracking and prevent lateral movement during operation.

Are the bearings sealed or open?

All variants come with sealed double-side ball bearings. The dual seals retain factory lubricant and block dust, debris, and moisture from entering the bearing, extending service life in typical workshop and machine environments.

Can I use these pulleys for bidirectional belt travel?

Yes, the double-side bearing configuration supports bidirectional rotation without play or lateral drift. This makes them suitable for applications where the belt reverses direction frequently, such as 3D printer axes and CNC gantry systems.

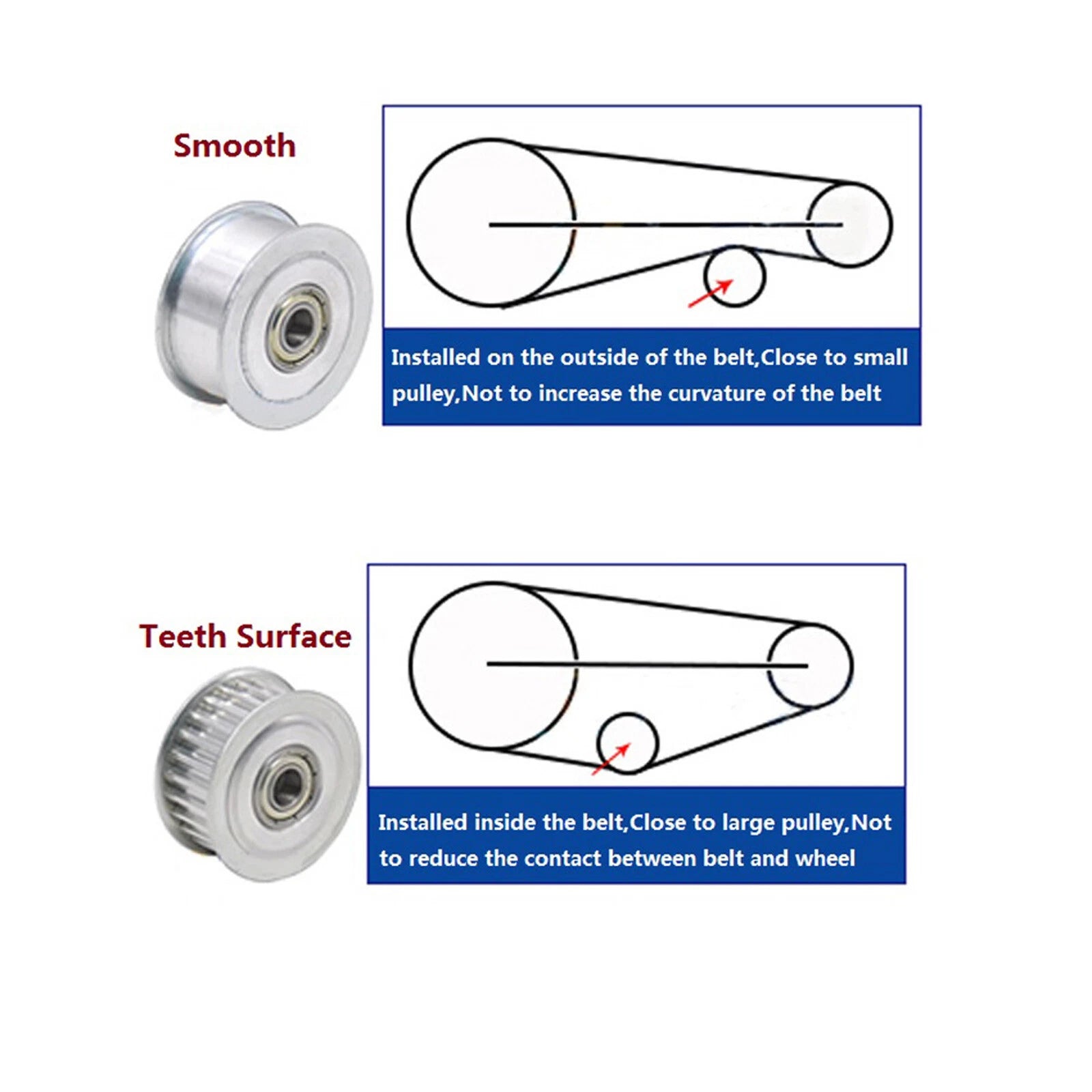

How do I install the idler pulley in my system?

Mount the pulley on a fixed or adjustable bracket using the bore as the mounting interface. Position it along the belt path to achieve the desired tension — typically on the slack side of the belt loop. Ensure the belt tracks centered on the pulley and that the bearing rotates freely after mounting. For toothed variants, align the pulley teeth with the belt teeth before securing.

🛒 Select your tooth count, profile, and belt width above, then add to cart.
