XL Timing Belt Pulley 10–30T — Stepless Synchronous Wheel for Precise DIY Motion Control

When your CNC router, 3D printer, or custom automation rig demands slip-free, backlash-free power transfer, a mismatched or low-spec pulley becomes the weakest link in the entire drivetrain. Makers, small-workshop engineers, and educational lab builders who need a reliable, drop-in XL timing belt pulley will find this stepless synchronous wheel a straightforward solution — no flanges to interfere with belt tracking, no guesswork on bore sizing.

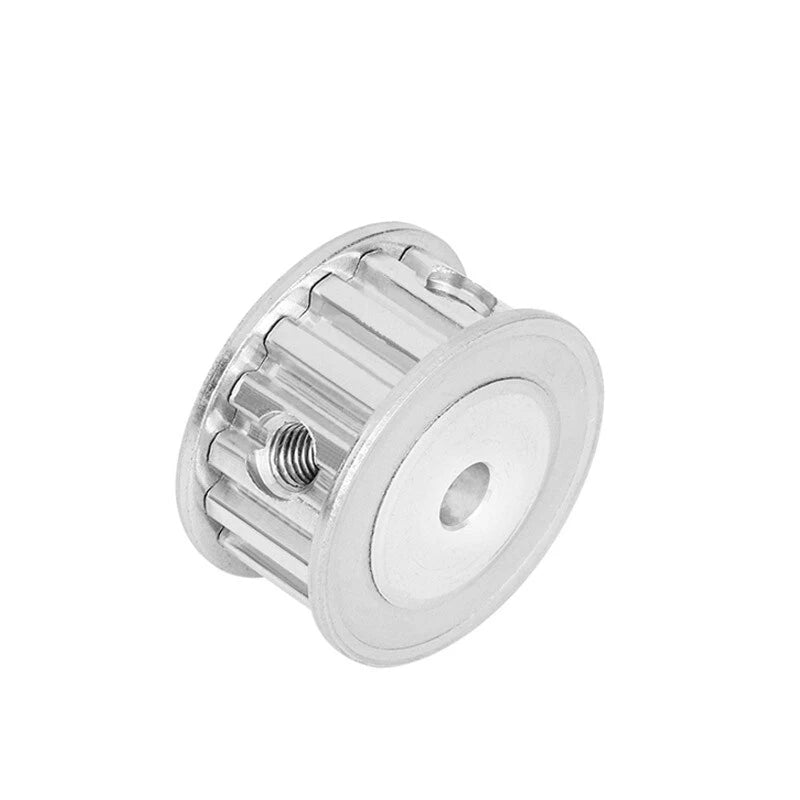

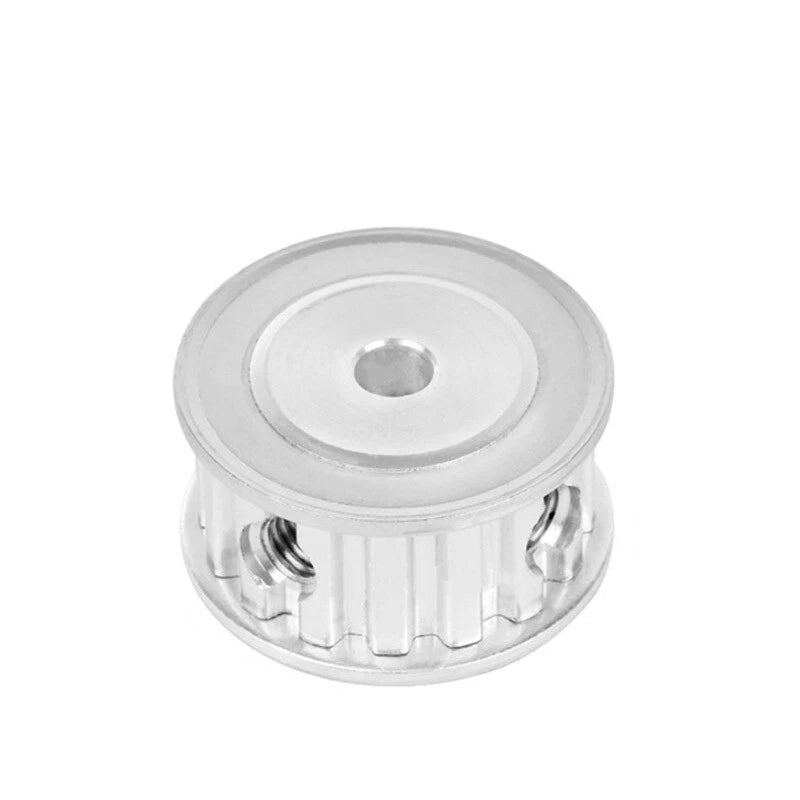

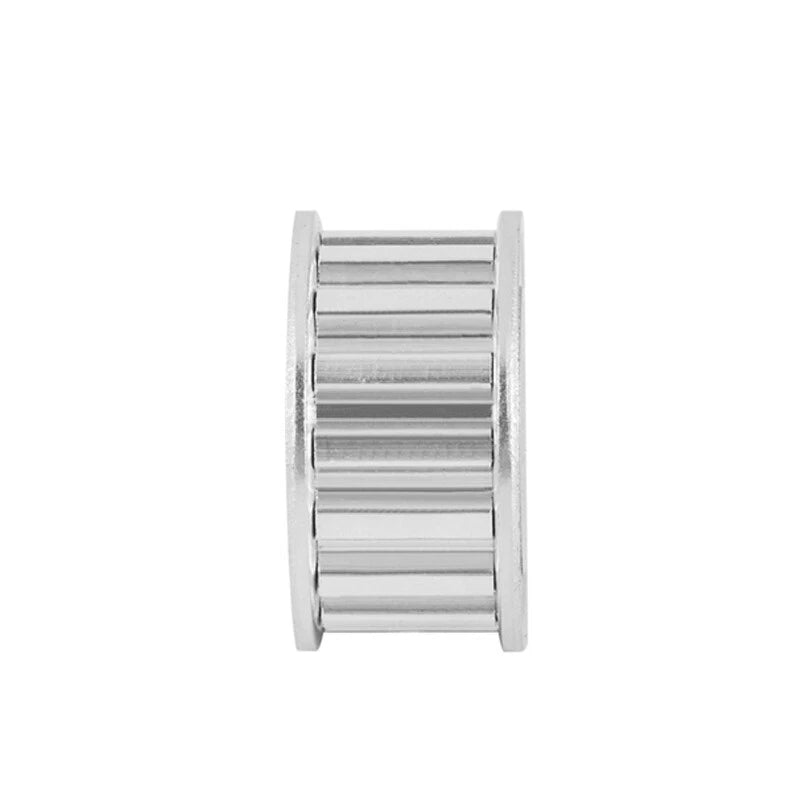

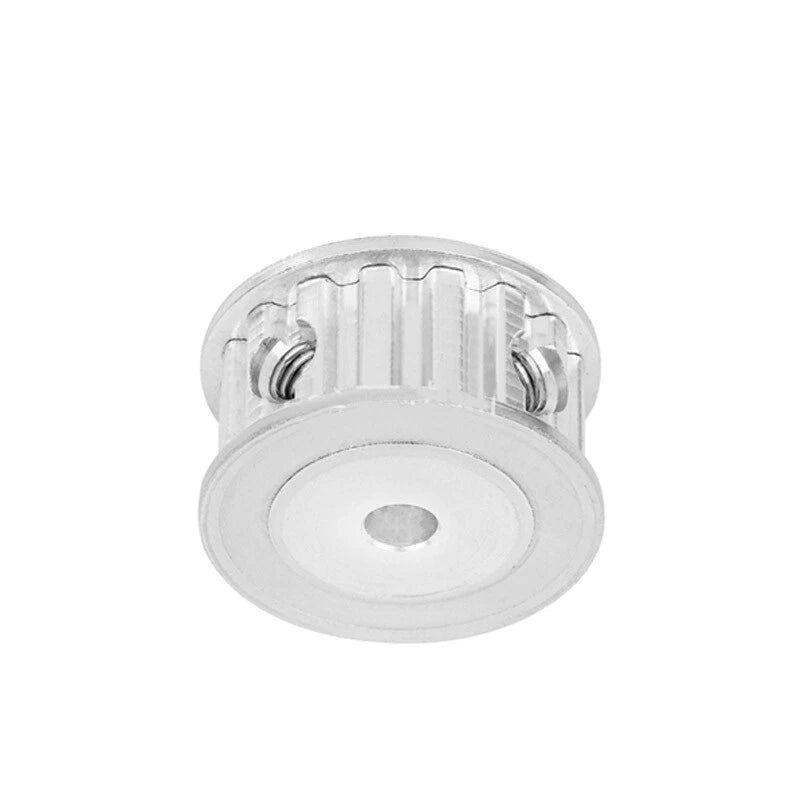

These XL timing belt pulleys are machined from aluminum alloy with an anodized finish, available in tooth counts from 10T to 30T and a tooth width of 14mm (compatible with standard 13mm-wide XL belts). Bore diameters span 4mm to 20mm (approximately 0.16 in to 0.79 in), covering the most common motor shaft sizes used in hobby and light-industrial automation. The stepless (no-flange) body keeps the profile compact and reduces overall assembly weight.

Typical use cases include XL belt drive systems for DIY CNC machines requiring precise axis positioning, 3D printer X/Y gantry drives where low backlash is critical, and custom conveyor or pick-and-place automation projects in maker spaces and educational robotics labs.

⚙️ Compatibility: Designed for standard XL-profile timing belts with 13mm usable width (14mm tooth width). Pitch: 5.08mm (0.200 in). Verify bore diameter matches your motor or shaft before ordering.

✅ Key Features of These XL Timing Belt Pulleys

🔩 Wide Tooth Count Range (10T–30T)

Select the exact gear ratio your drive system needs — from compact 10-tooth sprockets for high-speed, low-torque runs to 30-tooth pulleys for torque-multiplying configurations.

📐 Multi-Bore Options (4–20mm)

Bore diameters from 4mm to 20mm (including 6.35mm / ¼ in and 12.7mm / ½ in imperial sizes) let you mount directly onto stepper motor shafts, servo shafts, or custom axles without additional adapters.

🏗️ Stepless (No-Flange) Design

The clean, flangeless body reduces weight and simplifies belt alignment in tight enclosures — ideal for compact CNC and 3D printer builds where every millimeter of clearance matters.

🔧 Aluminum Alloy Construction

Machined aluminum alloy body delivers a strong strength-to-weight ratio, resists corrosion in workshop environments, and maintains dimensional accuracy under continuous cyclic loading.

⚡ XL-Profile Tooth Geometry

The XL (Extra Light) tooth profile with 5.08mm pitch provides positive engagement with XL timing belts, minimizing tooth skip under moderate loads in positioning and conveying applications.

📦 Single-Piece & Bulk Pack Options

Available individually for prototyping or as a 30-piece bulk pack (30T × 30 pcs) for production runs, classroom kits, or stocking a workshop with ready-to-use spares.

📐 Technical Specifications — XL Timing Belt Pulley

Belt Profile XL (Extra Light)
Pitch 5.08 mm (0.200 in)
Tooth Count Options 10T, 12T, 14T, 15T, 16T, 18T, 20T, 22T, 24T, 25T, 26T, 28T, 30T
Tooth Width 14 mm
Compatible Belt Width 13 mm
Bore Diameter Options 4, 5, 6, 6.35, 8, 10, 12, 12.7, 14, 15, 16, 17, 18, 19, 20 mm
Body Style Stepless (no flange)
Material Aluminum alloy
Outer Diameter See variant options
Hub Length See variant options
Set Screw See variant options
Pack Quantity 1 pc (standard); 30 pcs (bulk option for 30T)

❓ Frequently Asked Questions

How do I choose the right tooth count for my application?

The tooth count determines your drive ratio. Pair a smaller pulley on the motor shaft with a larger pulley on the driven shaft to reduce speed and increase torque, or use equal tooth counts for a 1:1 ratio. For most DIY CNC and 3D printer builds, 20T is a common starting point on the motor side. Calculate your steps-per-mm or linear travel per revolution based on the tooth count and belt pitch (5.08mm × tooth count = pitch circumference).

Which bore diameter should I select for a NEMA 17 stepper motor?

NEMA 17 stepper motors typically have a 5mm output shaft. Select the 5mm bore option. If your motor has a D-cut shaft, you will need to add a set screw after installation to lock the pulley in place — check your variant's set screw specification before ordering.

Is this pulley compatible with GT2 or HTD belts?

No. This pulley is designed specifically for XL-profile timing belts with a 5.08mm pitch. GT2 belts use a 2mm pitch and HTD belts use a different tooth profile — they are not interchangeable. Always match the pulley profile to your belt profile for reliable engagement.

How strong is the aluminum alloy body under continuous load?

Aluminum alloy pulleys are well-suited for light-to-moderate duty automation, CNC routing, and 3D printing applications. They handle the cyclic tensile loads typical of XL belt drives in these contexts. For heavy industrial conveying or high-shock-load environments, a steel pulley would be more appropriate. If you are unsure whether this pulley suits your load requirements, contact us to confirm before ordering.

Does the stepless (no-flange) design affect belt tracking?

A stepless pulley relies on proper belt tension and parallel shaft alignment to keep the belt tracking correctly — there are no flanges to physically constrain the belt laterally. For most enclosed CNC and 3D printer frames where shafts are well-aligned, this works reliably. If your application involves vibration or misalignment risk, consider adding belt guides or using a flanged pulley variant.

Can I use this pulley with a 12.7mm (½ inch) shaft?

Yes. The 12.7mm bore option is available on select tooth counts (20T, 24T, 25T) and is sized for standard ½-inch imperial shafts. Check the variant selector to confirm availability for your required tooth count before adding to cart.

What is the difference between the single-piece and the 30-piece bulk option?

The standard variants are sold as individual pulleys (1 pc), suitable for prototyping or single-machine builds. The 30T – 30 Pcs variant is a bulk pack of thirty 30-tooth pulleys with an 8mm bore, intended for production runs, classroom robotics kits, or workshop stock. The per-unit price in the bulk pack reflects the volume discount.
