How to Measure Internal Diameter With a Tape Measure？

Materials List

• Standard retractable tape measure
• The object to measure — a pipe, box, drawer, door frame, or any surface with an internal dimension

Step-by-Step

Step 1: Understand the Sliding Hook Design

The metal hook at the end of your tape measure is intentionally loose — it slides on its rivet. This is called zero compensation. The amount of slide equals the thickness of the hook itself, ensuring your reading always starts from a true zero point, whether you're pulling from the outside or pushing from the inside.

Step 2: Hook the Inside Edge

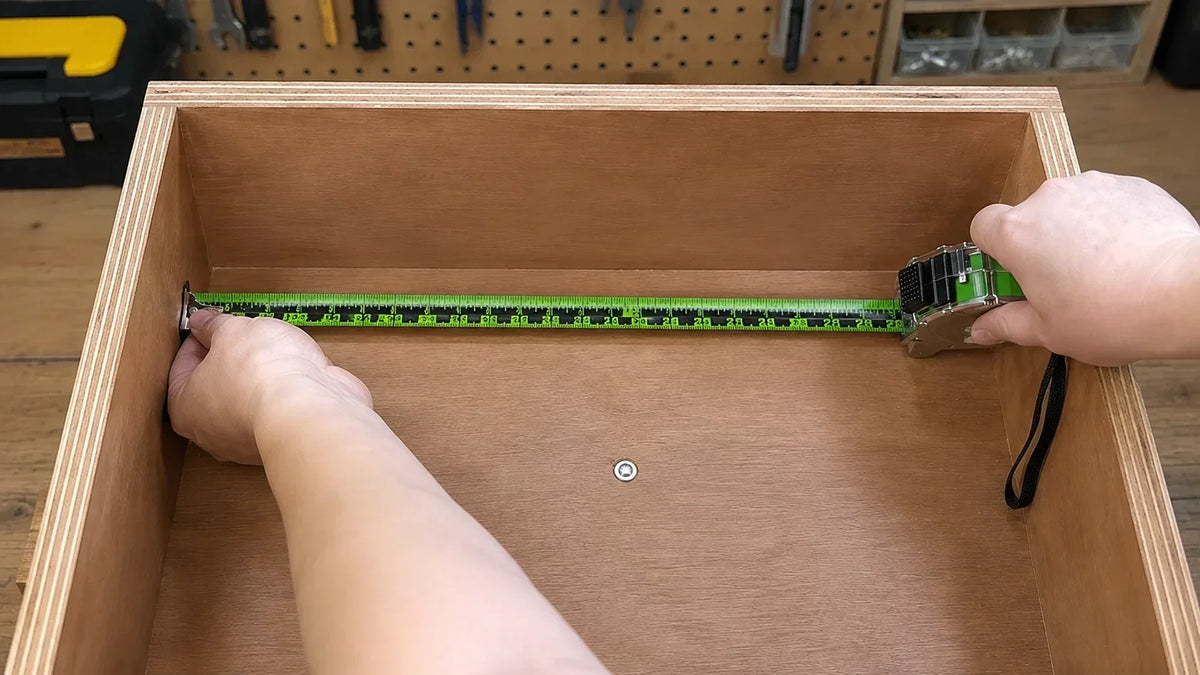

Place the metal hook against one inner wall of the object you're measuring — for example, the inside of a pipe or the inner edge of a drawer opening. The hook should catch firmly on that edge, just as it would on the outside of a board.

Step 3: Pull the Tape Across

Extend the tape body until it contacts the opposite inner wall. Because the hook slides inward when you push, the hook's thickness is automatically compensated — the number on the tape is your true internal diameter with no manual math required.

Step 4: Read the Measurement Directly

Read the value where the tape meets the far wall. That's your inside dimension. No need to add or subtract anything — the sliding hook has already handled the offset for you.

Step 5: Use the Printed Hook Width (Backup Method)

If you can't hook the edge — say, you're butting the tape against a flat surface — look for a small number stamped on the side of the metal hook. That number (often 3 inches or 76 mm) tells you the hook's exact width. Add it to your tape reading to get the true inside dimension. This is the manual DIY measurement fallback for tight spaces.

Step 6: Double-Check for Accuracy

Run the measurement twice. Wiggle the hook to confirm it slides freely — a rusted or jammed hook defeats the zero-compensation feature. This quick tape measure tip catches errors before they cost you a miscut piece of material.

Grab your tape and try it now. Go measure the inside of a drawer, a pipe, or a door frame. Once you feel that hook slide, you'll never look at your tape measure the same way again. Small design details like this are what make home improvement projects come out right the first time.
