How to Wrap Electrical Tape Correctly on Wire Connections?

Materials List

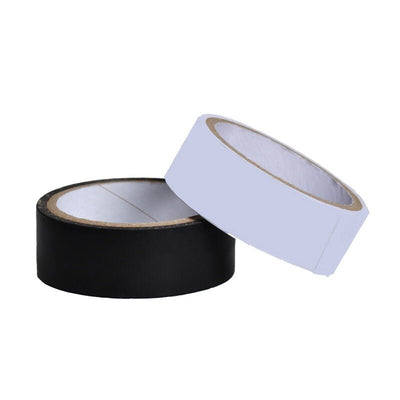

• Electrical Insulation Tape

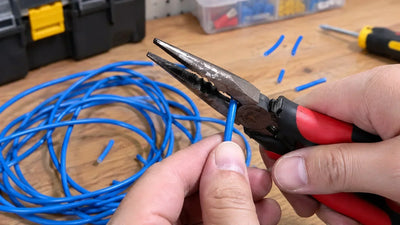

• Pliers / Wire Strippers
• Wire Cutters

Step-by-Step Breakdown

Step 1: Wrap the Single Wire Core

Start by anchoring your tape. Wrap the electrical tape tightly around one individual wire lead first before joining both wires together. This initial loop creates an internal anchor that keeps the tape wedged in place even if adhesive degrades later.

Step 2: Bundle Both Wires with Overlapping Turns

Bring both wire ends together. Wind the tape tightly around both wires simultaneously for several continuous turns, overlapping each layer by half its width as you move toward the wire tip.

Step 3: Seal and Fold the Wire Tip

When you reach the very end of the wire splice, extend the tape past the tip and wrap it thoroughly. Fold the extended tape end back onto itself over the tip to eliminate sharp points and seal off potential current leakage.

Step 4: Reverse Wrap for Double Layer Insulation

Continue wrapping in the opposite direction back toward the starting point. This double-layer reverse pass significantly enhances insulation, seals out moisture, and guarantees the tape won't slip loose over time.

A quick electrical splice doesn't have to compromise safety. By mastering this simple fold-and-double-layer tape wrapping trick, your home wiring projects will stay safe and secure for years to come. Grab your electrical tape, inspect your household wiring projects, and let’s get DIYing!
