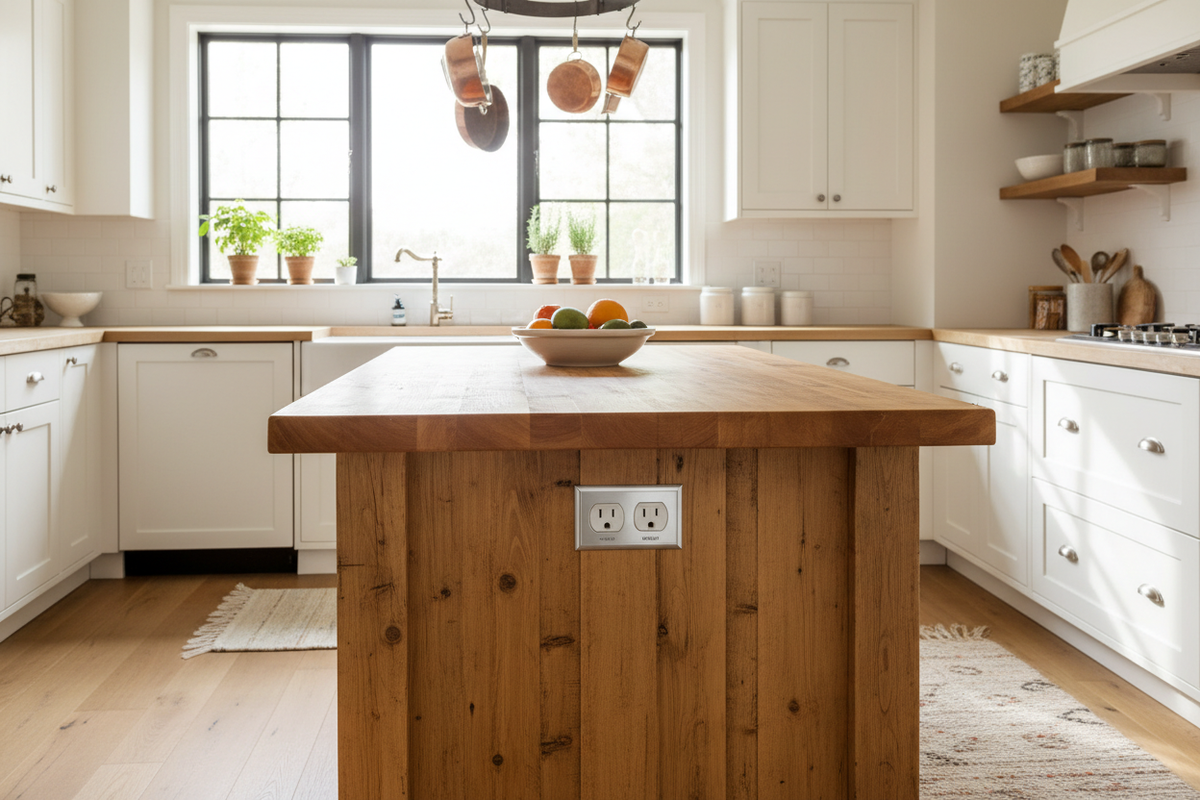

Adding Power to a Kitchen Island: Code Requirements & DIY Wiring

You built the island, stained the top, and set it exactly where you wanted it — then realized there's nowhere to plug in the stand mixer, charge a phone, or run the pendant light. Adding power to a kitchen island is a common DIY finish-out project, but it has specific code requirements that affect how, where, and what type of outlet you can install.

This guide covers NEC requirements, circuit planning, and step-by-step installation — including when a pre-wired island makes more sense than a retrofit.

NEC Code Requirements for Kitchen Island Outlets

The 24-Inch Rule

The 2020 National Electrical Code (NEC 210.52(C)(2)) requires at least one receptacle outlet for kitchen islands with a long dimension of 24 inches or more and a short dimension of 12 inches or more. If your island meets those dimensions, an outlet is not optional — it's required for a code-compliant installation.

GFCI Protection

All receptacles installed in kitchen islands must be GFCI-protected, regardless of distance from the sink. This has been the code requirement since 2014 and was reinforced in the 2020 NEC update. A GFCI receptacle or a GFCI circuit breaker protecting the circuit both satisfy this requirement.

15-Amp vs. 20-Amp Circuit

If your island outlet will serve small appliances — stand mixers, blenders, coffee makers, or toaster ovens — a 20-amp dedicated circuit is the right choice. These appliances routinely draw 8–12 amps under load. A 20-amp circuit requires 12 AWG wire and a 20-amp breaker.

Permit Considerations

Adding a new circuit from the panel almost always requires an electrical permit in the US. Check with your local building department before starting work.

Planning Your Island Wiring

Determining Load Requirements

List every appliance you plan to use at the island simultaneously. Total their rated amperage and leave 20% headroom below the circuit breaker rating as a working margin.

Dedicated Circuit vs. Tapping an Existing Line

A dedicated 20-amp circuit from the panel is the cleanest solution. Tapping an existing kitchen circuit is permissible if total load stays within ampacity limits, but you'll need to calculate existing loads carefully.

Wire Routing Options

• Through the floor: Most common for islands positioned away from walls. Run conduit or Romex through the subfloor, up through the island base.
• Through the wall: Works for islands adjacent to walls. The surface run from wall to island must be in conduit or raceway — exposed Romex is not acceptable in finished spaces.

Tools and Materials Checklist

• Non-contact voltage tester
• 12 AWG NM-B cable (or appropriate conduit and wire)
• 20-amp GFCI duplex receptacle
• Single-gang electrical box
• 20-amp breaker
• Cable staples or conduit clamps
• Drill and spade or hole saw bits
• Fish tape or wire snake

Step-by-Step: Installing a Power Outlet in a Kitchen Island

Step 1 — Turn Off the Circuit and Verify

Turn off the breaker and use a non-contact tester to verify the outlet or wiring you're working near is dead before touching any conductors.

Step 2 — Plan the Outlet Location and Cut the Opening

The outlet should be on the side of the island, not the top surface. Mark and cut the box opening using a jab saw or oscillating tool.

Step 3 — Route the Cable to the Island Base

Run 12 AWG NM-B cable from the panel through the floor or wall and up into the island base. Secure cable with staples every 4 feet and within 12 inches of each box.

Step 4 — Install the Electrical Box and Secure Wiring

Pull cable into the box, leaving 6–8 inches of wire. Strip 3/4 inch of insulation from each conductor.

Step 5 — Connect the GFCI Receptacle

Connect incoming circuit wires to the LINE terminals (hot to brass, neutral to silver, ground to green). Cap the LOAD terminals if not protecting downstream outlets.

Step 6 — Test Before Closing Up

Restore power. Press TEST — outlet goes dead. Press RESET — outlet restores. Plug in an outlet tester to verify correct wiring polarity.

Built-In Power Outlet Islands — What to Look For

If selecting a new island rather than retrofitting, look for pre-wired outlet rough-in, UL listing on the outlet assembly, and outlet location on the side panel. The farmhouse kitchen island with built-in power outlet includes an integrated outlet assembly — connect the supply circuit and you're done.

Common Mistakes DIYers Make

• Using a non-GFCI outlet: A code violation, even with AFCI breaker protection.
• Overloading an existing circuit: Calculate existing loads before tapping in.
• Extension cords as a permanent solution: A code violation and fire hazard.
• Skipping the permit: Affects insurance coverage and creates liability at resale.

FAQ

Do I need a permit to add an outlet to my kitchen island? For a new circuit, almost certainly yes. Check with your local jurisdiction for tapping existing circuits.

Can I use a power strip instead? Not as a permanent solution — power strips are not a code-compliant wiring method for fixed installations.

What gauge wire for a kitchen island outlet? 12 AWG for a 20-amp circuit.

Does the outlet need GFCI if it's more than 6 feet from the sink? Yes. NEC requires GFCI for all kitchen island receptacles regardless of distance.

Can I install the outlet on the end panel? Yes, as long as it's on the island structure itself, not recessed into the countertop.

Wrapping Up

Adding power to a kitchen island is straightforward for a DIYer comfortable with basic electrical work — but the code requirements are specific. Plan the circuit correctly, use GFCI protection, and don't skip the inspection.

If starting from scratch, the farmhouse kitchen island with built-in power outlet removes the retrofit complexity entirely.
