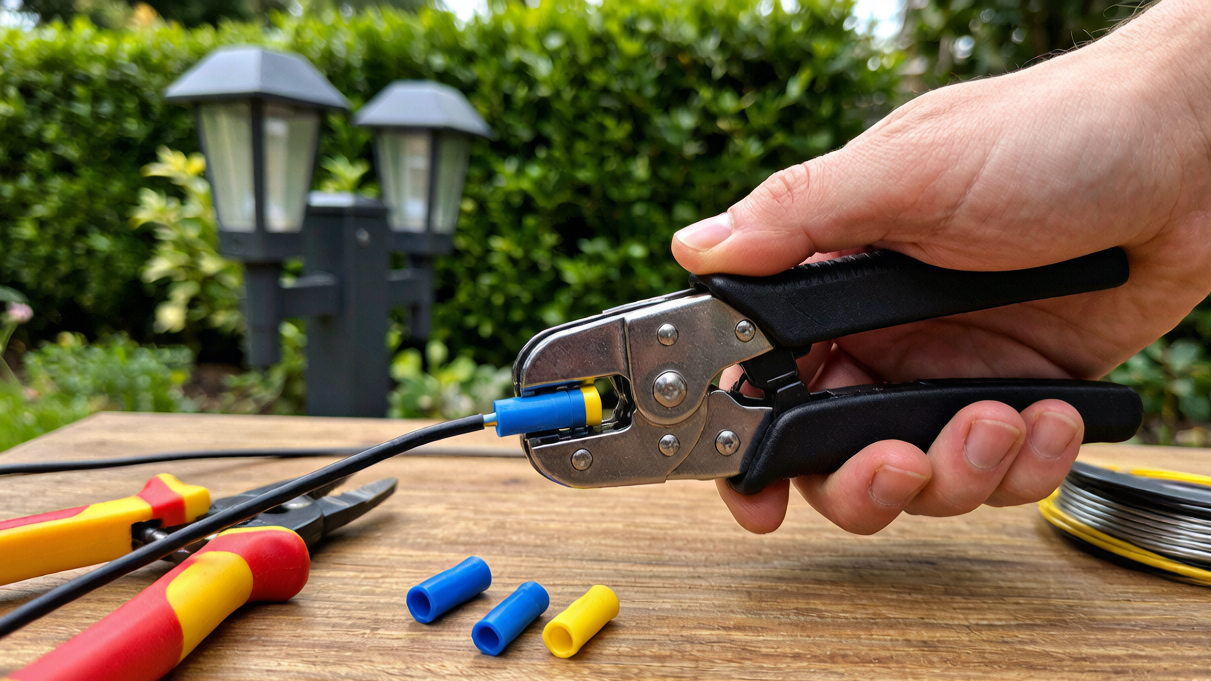

Outdoor electrical connections are one of the most overlooked failure points in DIY projects. A standard butt connector that works perfectly indoors will corrode, crack, and fail within one season when exposed to rain, UV, and temperature swings. Waterproof butt terminals solve this problem permanently — and they're just as easy to install as standard connectors. This guide covers everything you need to make safe, weatherproof electrical connections for outdoor light fixtures, pumps, and garden equipment. ⚡
What Are Waterproof Butt Terminals?
A waterproof butt connector (also called a heat-shrink butt terminal or marine butt connector) is a crimp connector with a built-in heat-shrink sleeve lined with adhesive sealant. When you apply heat after crimping, the sleeve shrinks and the adhesive melts to form a watertight seal around the wire. The result is a connection that's protected from moisture, corrosion, vibration, and UV exposure.
Waterproof vs. Standard Butt Connectors
| Feature | Standard Butt Connector | Waterproof Heat-Shrink Butt Terminal |
|---|---|---|
| Water resistance | None | IP67 rated (fully waterproof) |
| Corrosion protection | Minimal | Adhesive seal prevents moisture ingress |
| UV resistance | Poor | Good (polyolefin sleeve) |
| Vibration resistance | Low | High (adhesive locks wire in place) |
| Installation time | 30 seconds | 60–90 seconds (includes heat shrink) |
| Best for | Dry indoor use only | Outdoor, marine, automotive, underground |
Wire Gauge Selection Guide (AWG)
| Wire Gauge (AWG) | Max Current | Connector Color | Typical Application |
|---|---|---|---|
| 22–18 AWG | Up to 7A | Red | Low-voltage lighting, sensors, doorbells |
| 16–14 AWG | Up to 15A | Blue | Outdoor light fixtures, garden pumps, fans |
| 12–10 AWG | Up to 30A | Yellow | High-draw pumps, outdoor outlets, HVAC |
⚠️ Safety note: Always match the connector to the wire gauge. An oversized connector won't crimp properly and will fail. An undersized connector can overheat under load.
How to Install Waterproof Butt Terminals: Step-by-Step 🛠️
Tools You'll Need
- Wire stripper (set to correct AWG)
- Ratcheting crimping tool (not pliers — pliers don't apply consistent force)
- Heat gun (or lighter for small jobs)
- Waterproof butt terminals in the correct gauge
- Strip the wire ends — remove 5/8" (15mm) of insulation from each wire end. Don't nick the conductors
- Twist the strands lightly to keep them together — prevents stray strands from missing the crimp barrel
- Insert wire into one end of the connector until the conductors reach the center stop
- Crimp firmly with a ratcheting crimper — the ratchet ensures full crimp force before releasing
- Insert the second wire into the other end and crimp
- Apply heat evenly with a heat gun, starting from the center and moving outward. The sleeve will shrink and you'll see adhesive squeeze out from both ends — that's the seal forming
- Tug test: Pull each wire firmly — a proper crimp won't pull out
Common Applications for Outdoor Waterproof Connections
💡 Outdoor Light Fixtures
Landscape lighting, string lights, post lights, and security lights all require weatherproof connections at the fixture junction. Use blue (16–14 AWG) waterproof butt terminals for standard 120V fixture wiring. For low-voltage landscape lighting (12V), red (22–18 AWG) connectors are typically correct.
💧 Garden & Pond Pumps
Pump connections are submerged or constantly wet — the most demanding environment for electrical connections. Use yellow (12–10 AWG) waterproof terminals for pump power leads. After crimping and heat-shrinking, wrap the connection with self-amalgamating tape for an additional layer of protection.
🚗 Trailer & Boat Wiring
Trailer lighting connections are exposed to road spray, salt, and submersion during boat launches. Waterproof butt terminals are the marine industry standard for all trailer wiring repairs. Pair with stainless self-tapping screws for mounting light fixtures to the trailer frame.
🌟 Solar & Low-Voltage Systems
Solar panel wiring, garden lighting transformers, and irrigation controllers all benefit from waterproof connections at every junction point. Red connectors (22–18 AWG) handle most low-voltage solar and landscape wiring.
Troubleshooting: Why Outdoor Electrical Connections Fail
- Green corrosion on wire ends: Moisture got into a non-waterproof connector. Cut back past the corrosion and re-terminate with a waterproof butt terminal
- Intermittent connection: Vibration worked the wire loose from an under-crimped connector. Re-crimp with a ratcheting tool
- Connector cracked or brittle: UV degradation of a standard PVC connector. Replace with a UV-resistant polyolefin heat-shrink terminal
- Heat shrink didn't seal: Heat applied too quickly or unevenly. Re-heat slowly and evenly until adhesive squeezes from both ends
Related Guides
- 🔗 Labor Day Backyard Prep — full outdoor fixture hardware checklist
- 🔗 Boat Trailer Hardware Maintenance — trailer wiring and fastener replacement guide
- 🔗 Year-Round Fastener Care — corrosion prevention for all outdoor hardware
Frequently Asked Questions ❓
Q: Can I use a lighter instead of a heat gun for heat-shrink terminals?
A lighter works for small jobs but is harder to control — uneven heat can scorch the sleeve before the adhesive fully melts. A heat gun gives consistent, controlled heat and is worth the investment if you're doing more than a few connections. Keep the heat gun moving and watch for adhesive squeeze-out as your signal that the seal is complete.
Q: Are waterproof butt terminals reusable?
No — once heat-shrunk, the adhesive seal is permanent. To remove, cut the wire and re-terminate with a new connector. This is actually a feature, not a limitation: the permanent seal is what makes them weatherproof.
Q: What AWG wire do most outdoor light fixtures use?
Most standard 120V outdoor light fixtures use 14 AWG wire (blue connector). Low-voltage landscape lighting (12V systems) typically uses 16–18 AWG (blue or red connector). Always check the fixture's wiring label or installation instructions to confirm before selecting a connector size.
Q: How fast does HomeDIYer ship electrical connectors?
Orders are produced in 1–2 business days and delivered in 3–7 business days. Connectors arrive in clearly labeled, organized packaging by gauge. Have a question about wire gauge or connector selection? Contact our support team for fast help. See our returns & refund policy before ordering.
