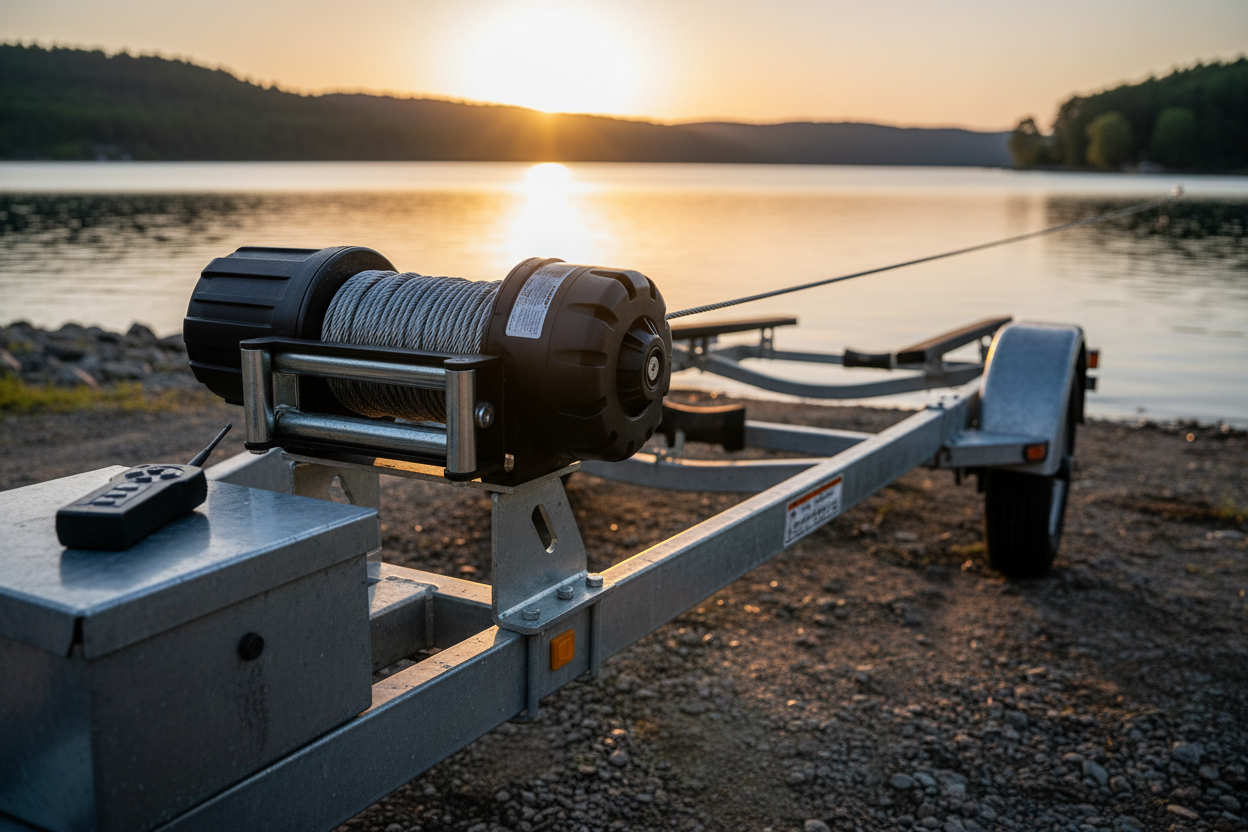

How to Set Up a Trailer Winch: Capacity, Wiring, and Safety

The most common mistake I see with trailer winch installations isn't undersizing the capacity — it's wiring the winch through an existing trailer harness because it "seems easier." Trailer lighting circuits aren't built for the current draw a winch pulls at load, and the result is overheated wiring, blown fuses inside the trailer connector, and in some cases a wiring fire. The other frequent problem is mounting to a receiver hitch insert without confirming the insert's tongue weight rating can actually handle the winch's rated pull. Both are fixable at installation time. Neither is fixable when you're on a boat ramp at low tide with a stuck trailer.

This guide covers how to size the winch correctly, mount it securely, wire it safely, and rig it so it doesn't fail when you need it.

Quick Answer: To set up a trailer winch correctly: (1) select a winch rated for at least 1.5x your heaviest load weight per the manufacturer's sizing guidance, (2) mount to a receiver hitch insert or frame plate rated for the winch load, (3) wire directly to the battery with a fuse rated per the manufacturer's specification — never through the trailer harness, and (4) inspect the rope or cable before each use. Always verify capacity and wiring specs with the winch manufacturer's documentation for your specific application.

Calculating the Right Winch Capacity

The rated pull of a winch and the weight of the load you're pulling are not the same number. On a flat hard surface, a winch might only need to overcome rolling resistance — a fraction of the load's weight. On a slope, through mud, or when pulling a stuck vehicle or boat, the required force increases significantly.

A commonly used starting point: select a winch rated for at least 1.5 times the gross weight of the heaviest load you expect to pull. Some applications and manufacturers recommend higher multipliers for steep grades or off-road recovery. Always consult the winch manufacturer's sizing guidelines — don't rely solely on rule-of-thumb multipliers for critical or high-load situations.

One detail that's easy to miss: winch line pull ratings are stated for a single wrap on the drum (the first layer of rope). As additional layers wrap onto the drum, the effective pull rating decreases because the larger drum diameter reduces mechanical advantage. Check the manufacturer's rated pull for the number of layers you'll actually use in your application.

HomeDIYer carries electric trailer winches across a range of capacities — the 2,000 lb 12V trailer winch works well for lighter boat trailers and utility loads, the 5,000 lb model suits mid-size boats and equipment trailers, and the 6,000 lb version handles heavier loads where you need rated capacity with a safety margin. Confirm the correct size with the manufacturer's specifications for your specific load and use case before purchasing.

Mounting: Receiver Hitch vs. Dedicated Mounting Plate

For bolt-on installations, use grade 5 or grade 8 bolts at the size and quantity specified by the mount manufacturer. The mounting hardware must match the load rating of the winch. Do not use sheet metal screws or self-tapping fasteners to attach a winch mount to a structural trailer member.

Wiring a 12V Electric Winch Safely

This is where most installations go wrong. Electric winches draw significant current at peak load — undersized wire causes voltage drop that reduces performance and generates heat that can damage insulation and start fires. The correct wire gauge and fuse size are specified by the winch manufacturer for your winch's rated amperage draw. Follow those specifications exactly. Do not substitute a heavier fuse to avoid blown fuses — the fuse protects the wiring, not the winch.

1. Run power leads directly from the battery — not from a fuse panel or the trailer's 7-pin connector. Winches require a dedicated high-current circuit. The 7-pin harness is designed for lighting and brake signals only.
2. Install the fuse or circuit breaker as close to the battery positive terminal as practical — within 18 inches is a common recommendation. This protects the entire length of the positive lead from a short circuit.
3. Use the wire gauge specified by the winch manufacturer for your run length. Longer runs require heavier gauge wire to maintain adequate voltage under load. If your run exceeds the manufacturer's base specification, consult their derating table.
4. Connect both positive and negative leads securely at the battery with ring terminals. Loose connections cause resistance, heat, and intermittent failures under load.
5. Route wiring away from heat sources, moving parts, and sharp edges. Use loom, conduit, or grommets wherever wiring passes through metal panels.
6. Install a disconnect switch if the winch won't be in regular use. This prevents parasitic drain and provides a safety shutoff.

If you're not experienced with 12V high-current wiring, have the installation inspected by a qualified installer before first use.

Rope and Rigging: Synthetic vs. Wire Cable

• Wire cable stores energy under tension and can snap back with significant force if it parts. Broken wire strands cause cuts during handling. More abrasion-resistant and handles heat better.
• Synthetic rope drops to the ground rather than snapping back if it fails — a meaningful safety advantage in recovery situations. Lighter, easier to handle with bare hands, and floats. More susceptible to UV degradation; requires replacement if abraded.

For most trailer loading and recovery applications, synthetic rope is the safer handling choice. Always use rated rigging hardware — shackles, hooks, and blocks rated for the load — rather than unrated hardware store chain or hooks.

Safe Operating Practices

• Never stand in the direct line of the rope or cable under tension. If the line fails, it travels in the direction it was pulling. Bystanders should stand to the side, not in front of or behind the load.
• Drape a dampener over the rope mid-span when pulling. A heavy blanket, floor mat, or purpose-made rope dampener reduces how far a parted line travels.
• Do not wrap rope or cable around your hand or body to guide it. Use a rated hook or a gloved hand on the drum-side of the load only.
• Keep at least five wraps of rope on the drum at minimum load. Fewer wraps reduce the anchor strength of the drum attachment and can cause the rope to slip.
• Inspect the rope or cable before each use. Wire cable with broken strands, kinking, or corrosion should be replaced. Synthetic rope with cuts, fraying, or significant UV discoloration should be replaced.

Common Mistakes

• Sizing the winch to the vehicle weight, not the pull force required. A 5,000 lb vehicle on a steep muddy slope needs significantly more than 5,000 lbs of pull force. Apply a capacity multiplier and verify with the manufacturer's sizing guidance.
• Wiring through the trailer's 7-pin harness. Trailer lighting circuits are not designed for winch current draw. This overheats the harness and can cause fire.
• Using unrated hooks, chain, or straps as rigging. Hardware store S-hooks and tow chains are not rated for dynamic winch loads. Use shackles and straps with working load limits clearly marked.
• Running the winch to full drum with no rope reserve. The innermost wraps of rope on the drum are the anchor. Running completely out of rope can cause the drum fitting to fail under load.
• Skipping the fuse on the positive lead. Without a fuse, a short in the positive lead between the battery and the winch has no protection. High-current shorts in unprotected wiring cause fires.
• Not testing under load before first real use. Test with a real load at home before your first actual recovery or boat launch. Confirm the winch operates correctly in both directions and that all connections stay cool during operation.

FAQ

I wired my winch through the trailer connector to keep the installation simple, and now it blows a fuse every time I use it under load — what's happening?
The trailer connector circuit isn't designed for the current a winch draws at load. The fuse is protecting the trailer wiring from overheating — it's doing its job. The fix is to run a dedicated circuit directly from the battery with wire gauge and fuse rating specified by the winch manufacturer. There's no workaround that keeps the trailer harness in the circuit safely.

How do I know what capacity winch I need for my trailer?
Start with the gross weight of the heaviest load you plan to pull, then apply the capacity multiplier recommended by the winch manufacturer for your use case. For trailer loading on a gentle slope with a rolling load, 1.5x is a common starting point. For steep grades or stuck vehicles, the required multiplier is higher. Consult the manufacturer's sizing guide before purchasing.

Can I wire my trailer winch to the trailer's 7-pin connector?
No. The 7-pin connector is designed for lighting and brake controller signals, not high-current accessory loads. Winch power must run directly from a battery with appropriately sized dedicated wiring and a fuse rated per the winch manufacturer's specification.

How often should I replace synthetic winch rope?
Inspect before every use. Replace immediately if you find cuts that penetrate the rope core, significant fraying, or sections that feel stiff or show UV discoloration. There's no calendar replacement interval — condition-based inspection is the correct approach.

Is it safe to leave a winch permanently wired to the battery?
Yes, if the wiring is correctly sized, fused, and the winch is in good condition. Install a battery disconnect switch if the winch will sit unused for extended periods to prevent slow parasitic drain from the winch control circuit.

Get the Setup Right Before You Need It

A trailer winch works hardest in high-stress situations — steep ramps, stuck vehicles, awkward angles. Those are exactly the conditions where undersized capacity, loose wiring, or poor rigging cause failures. Size correctly, wire to specification, and inspect rigging before use. View the full HomeDIYer trailer and outdoor hardware collection for mounting hardware and accessories suited for winch installation projects.
