Outdoor Storage Shed Assembly: Reinforce Your Shed With Heavy-Duty Fasteners

A storage shed is one of the most satisfying weekend builds you can tackle — but it's also one of the most common sources of structural failure when the wrong fasteners are used. Undersized screws, zinc-plated bolts that rust through in two seasons, and inadequate anchoring are the top reasons sheds wobble, leak, and eventually fail. This guide covers the right heavy-duty fasteners for shed assembly at every stage of the build. 🛠️

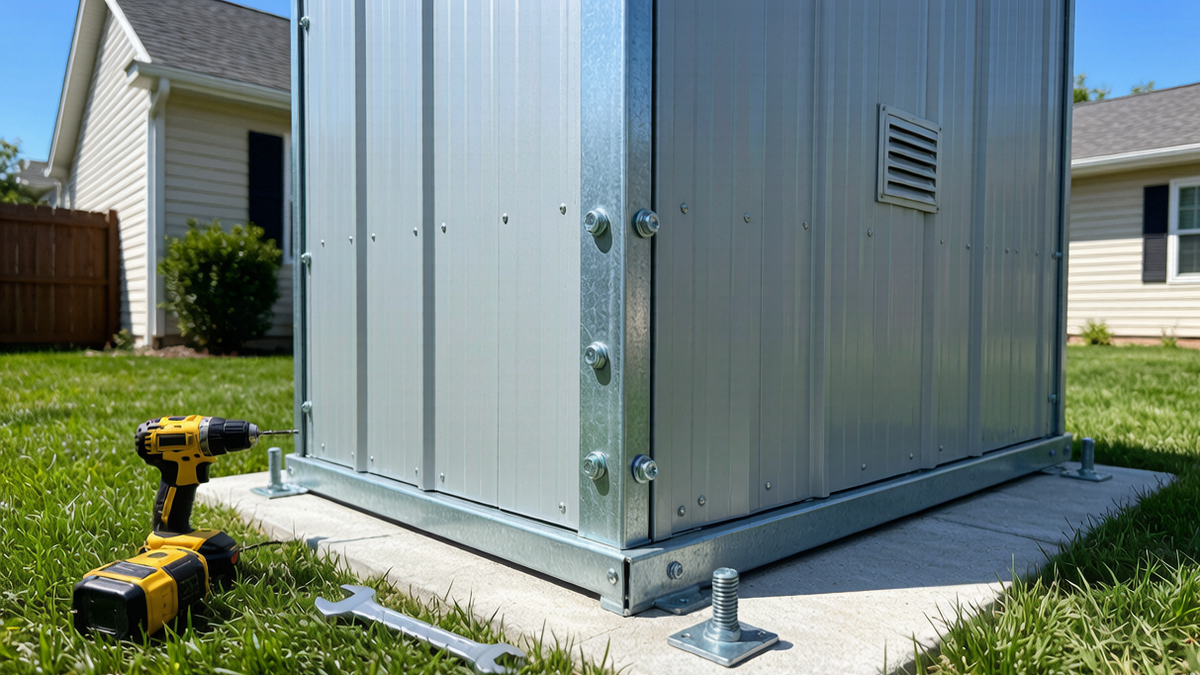

Shed Foundation Fasteners: Anchoring to Concrete vs. Gravel

Concrete Slab Foundation

The strongest and most permanent option. Use wedge expansion anchors or sleeve anchors to secure the shed base plate to the slab:

• Anchor size: M10 or 3/8" minimum for a standard shed; M12 or 1/2" for larger structures
• Embedment depth: Minimum 2.5" into concrete for adequate pull-out resistance
• Spacing: Every 24" along the base plate, plus corners
• Material: Hot-dip galvanized or stainless — concrete is alkaline and will corrode zinc-plated anchors over time

Gravel / Compacted Base

Use ground anchors or helical piers driven below the frost line. Connect to the shed frame with galvanized carriage bolts through the base plate.

Wooden Deck / Platform

Lag screw the shed base plate into the deck joists — not just the decking boards. Use 5/16" or 3/8" lag screws, minimum 3" long, into each joist. Pre-drill to prevent splitting.

Wall Framing Fasteners

Roof Fasteners: Keeping the Lid On

Rafter-to-Wall Plate Connection

This is the most critical connection in a shed — wind uplift tries to peel the roof off the walls. Use hurricane ties or rafter ties at every rafter, secured with the manufacturer-specified structural screws. Never substitute with standard drywall screws.

Roof Sheathing

• OSB or plywood: Ring-shank nails or coarse-thread screws, 2" minimum, 6" spacing at edges
• Metal roofing panels: Self-drilling roofing screws with EPDM washers — these seal the hole as they drive
• Polycarbonate panels: Pre-drill oversized holes (allow for thermal expansion), use stainless self-tapping screws with neoprene washers

Door Hardware: Hinges, Hasps & Handles

• Strap hinges: Through-bolt with carriage bolts and nyloc nuts — screws pull out under door weight over time
• Hasp and padlock: Through-bolt the hasp plate — surface screws are easily defeated
• Door handle: M5 or M6 machine screws with backing plate inside the door

Wind Bracing & Racking Resistance

Sheds without diagonal bracing rack (lean sideways) in wind. Options:

• Let-in bracing: 1x4 diagonal notched into studs, secured with 3" structural screws at each stud crossing
• Metal strap bracing: Galvanized steel straps across the wall frame, secured with joist hanger screws
• Plywood sheathing: Full sheets of 1/2" plywood act as a shear panel — the most effective racking resistance

Related Guides

• 🔗 Canopy Wind Protection — anchoring techniques that also apply to shed foundations
• 🔗 Year-Round Fastener Care — keep your shed hardware rust-free for decades
• 🔗 Machine Screws Buying Guide — for door hardware and interior fittings

Frequently Asked Questions ❓

Q: What size anchor bolts do I need for a shed on concrete?

For a standard 8x10 or 10x12 shed, use M10 (3/8") wedge anchors at minimum, spaced every 24" along the base plate. For larger sheds or high-wind areas, upgrade to M12 (1/2") anchors. Always check local building codes — some jurisdictions require engineered anchor specifications for permitted structures. Browse HomeDIYer's anchor collection for the right size.

Q: Can I use regular wood screws for shed framing?

Standard wood screws are not rated for structural connections. Use structural screws (also called construction screws) that are specifically rated for framing loads. They have a higher shear strength and are designed to resist withdrawal forces. For connections that see high loads (rafters, headers, corner posts), through-bolts are stronger than any screw.

Q: How do I prevent my shed from rusting out in 5 years?

Use hot-dip galvanized or stainless steel fasteners throughout — never zinc-plated. Zinc plating lasts 2–3 years outdoors; hot-dip galvanizing lasts 20–40 years. For coastal or high-humidity environments, 316 stainless is the best long-term investment. See our Year-Round Fastener Care guide for a full material selection matrix.

Q: How fast can I get shed fasteners from HomeDIYer?

Orders are produced in 1–2 business days and delivered in 3–7 business days. All fasteners arrive in clearly labeled, organized packaging by size. Need help selecting the right anchor or bolt grade? Contact our support team for fast help. See our returns & refund policy before ordering.
