How to Identify Bolt Thread Size: Metric vs. SAE Explained

You've pulled a bolt from a piece of equipment, a car, or an old piece of furniture and you need to match it. No label, no packaging. This is one of the most common situations in hands-on repair work, and guessing is expensive — a mismatched metric and SAE fastener can appear to thread together for two or three turns before the pitch difference causes them to bind and cut each other's threads. Once that happens, both parts are usually damaged.

Here are three reliable identification methods, a reference chart, and the situations where each approach makes the most sense.

Quick Answer: To identify a bolt's thread: (1) measure the outer diameter with calipers to narrow down the size range, (2) count threads per inch for SAE or measure thread spacing for metric, (3) confirm with a thread pitch gauge or pass-through thread checker before threading into any critical part. When in doubt, always verify physically — visual guessing is unreliable.

Metric vs. SAE: The Core Difference

SAE (Society of Automotive Engineers) fasteners use the imperial system. Outer diameter is expressed in fractional inches (1/4", 3/8", 1/2"), and thread density is described as TPI — threads per inch. A 3/8"-16 bolt has a 3/8" diameter and 16 threads per inch.

Metric fasteners use millimeters throughout. Outer diameter is a whole number (M6, M8, M10), and thread spacing is expressed as pitch in millimeters — the distance between adjacent thread crests. An M8×1.25 bolt has an 8mm diameter with 1.25mm between threads.

The confusion happens because some sizes are close in outer diameter. A 3/8" bolt measures approximately 9.5mm — close enough to an M10 (10mm) that the two can start threading together before the pitch mismatch causes them to lock up and cross-cut each other's threads. Once that happens, both parts are usually damaged.

A useful first indicator — not a definitive test — is the wrench size. SAE bolt heads use fractional inch sizes (9/16", 3/4"). Metric bolt heads use whole millimeter sizes (14mm, 17mm). If you have the original socket that fit the bolt, the marking on it tells you which system you're in.

Method 1 — Caliper Measurement (First Pass)

Before reaching for a thread gauge, a quick caliper measurement of the outer diameter narrows the field significantly. Measure across the thread crests (the outer diameter), not at the root.

This step tells you what size range you're in, but it doesn't tell you the thread pitch or which system it belongs to. The outer diameters are close enough in several cases that you'll still need to confirm the thread system separately before using the bolt.

Method 2 — Counting TPI (SAE Bolts Only)

If you suspect a bolt is SAE, hold a ruler flat against the threaded section and count how many thread crests fall within one inch. That number is the TPI.

Common SAE coarse thread TPI values: 20 (1/4"), 18 (5/16"), 16 (3/8"), 13 (1/2"). Fine thread versions of the same diameters have higher TPI: 28 (1/4"), 24 (5/16"), 24 (3/8"), 20 (1/2").

A few practical caveats: this method is harder to do accurately on fine-thread bolts where the crests are closely spaced — count twice and take the more consistent result. TPI counting also doesn't work for metric bolts, which use pitch (mm) rather than threads per inch. Don't try to cross-apply this method to metric fasteners.

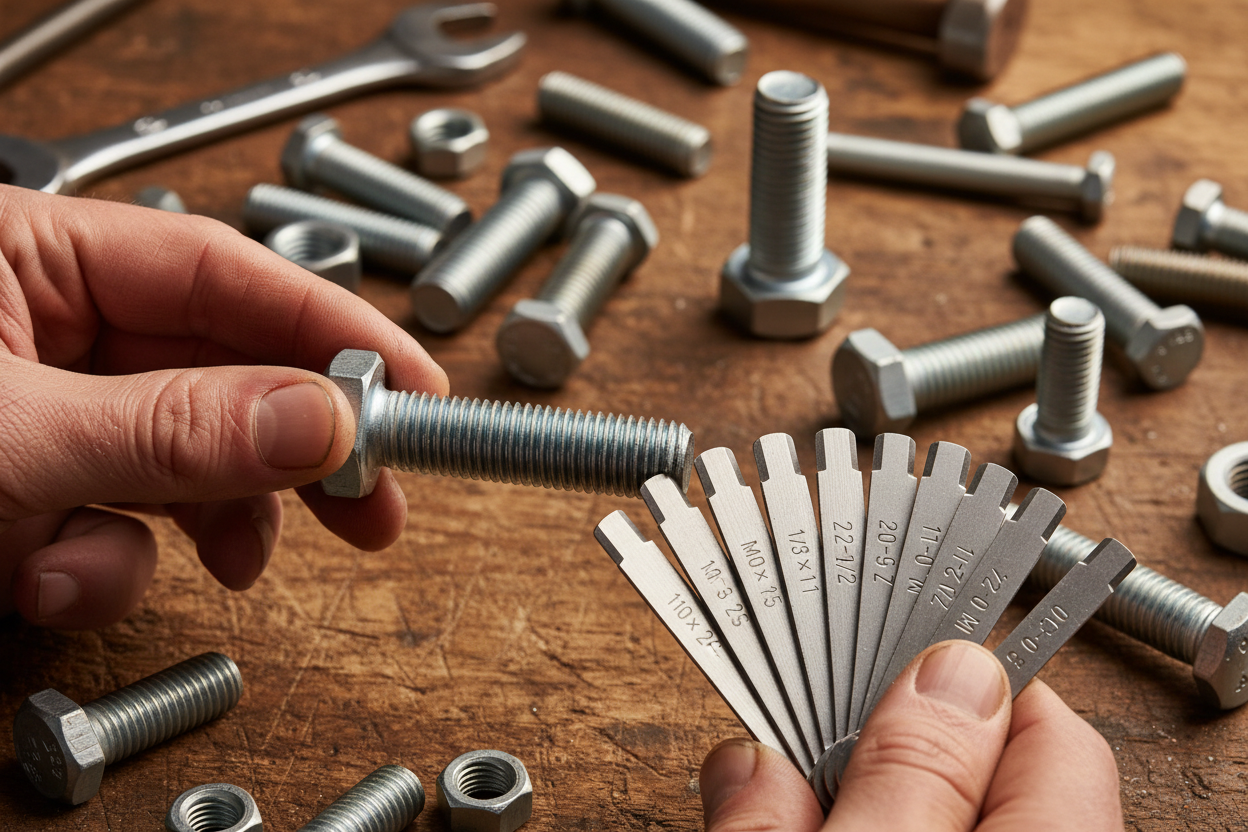

Method 3 — Thread Pitch Gauge (Most Reliable)

A thread pitch gauge eliminates guesswork. The tool consists of a set of thin blades or cards, each machined to match a specific thread profile. You work through them until one fits into the thread grooves without any gap — that's your size.

For external threads (bolts and screws): press each blade against the thread face. A correct match sits flush with no rocking and no visible gap between the gauge and the thread crests.

For internal threads (nuts and tapped holes): a pass-through style checker is easier. These have labeled holes that you thread the bolt through — find the one it threads into smoothly with no resistance and no play.

This is the method to use before threading a fastener into anything critical — an engine block, aluminum extrusion, or any tapped hole where stripping would be a serious problem. The 44-piece standard & metric thread checker covers both systems (23 standard + 21 metric) with both male and female gauges, which handles the internal thread identification that blade-style gauges can't reach reliably. For a more comprehensive set, the 52-piece thread checker set adds additional sizes for edge cases in older or imported equipment.

Which Method Should You Use?

Thread Size Reference Chart (Coarse Thread)

Note: Fine thread versions of these sizes exist with higher TPI (SAE) or smaller pitch (metric). If your bolt doesn't match the coarse thread values above, check fine thread specifications before concluding it's an unusual size.

Common Mistakes When Identifying Threads

• Matching only on outer diameter. Diameter tells you the size family; pitch tells you whether two parts are actually compatible. Skipping the pitch check is how cross-threading happens.
• Trying to apply TPI counting to metric bolts. Metric uses pitch (distance in mm), not threads per inch. The math doesn't translate.
• Threading parts together a few turns to "test fit." A mismatched metric and SAE pair can engage for 2–3 turns before the pitch difference causes binding and thread damage. By then, at least one part has damaged threads.
• Confusing coarse and fine thread of the same diameter. A 3/8"-16 (coarse) and a 3/8"-24 (fine) have identical outer diameters and are not interchangeable. Same with metric: M10×1.5 and M10×1.25 both measure 10mm across but have different pitches.
• Assuming the gauge is a match before it's fully seated. A blade that almost fits but rocks or has a visible gap is not a match. The correct gauge sits flush with zero movement.
• Associating bolt finish with thread system. Black oxide, zinc plate, and chrome are surface treatments. They have no relation to whether a bolt is metric or SAE.

FAQ

I tried threading a bolt into a nut and it went in fine for three turns, then locked up completely — is the bolt damaged?
Almost certainly a metric/SAE mismatch. The outer diameters are close enough that engagement starts, but the pitch difference causes the threads to bind and cut into each other after a few turns. Back it out immediately — do not force it. Inspect both parts carefully under good light before using either one again.

How can I tell if a bolt is metric or SAE without any tools?
Check the wrench or socket size that fits the bolt head. SAE sizes are fractions (3/8", 7/16", 1/2"). Metric sizes are whole millimeters (10mm, 13mm, 17mm). It's a useful starting point, but not a substitute for confirming thread pitch before installation in anything important.

What does M8×1.25 actually mean?
M8 indicates an 8mm outer diameter. 1.25 is the thread pitch — the distance in millimeters between adjacent thread crests. Both values must match your nut or tapped hole, not just the diameter.

Is there a difference between thread pitch and thread count?
Yes. Thread count (TPI) measures how many threads fit within one inch — used in the SAE system. Thread pitch measures the distance in millimeters between thread crests — used in the metric system. They describe the same physical characteristic using different units and are not interchangeable.

Do I need a separate gauge for metric and SAE, or is there one tool that covers both?
Combination sets that cover both metric and standard (SAE) are available and practical if you work on both American and imported equipment. The 44-piece standard & metric checker handles both systems in one kit — useful when you're dealing with mixed hardware from different sources and don't want to manage two separate sets.

Identify First, Thread Second

Thread identification takes under a minute with the right tool, and it's the step that separates a clean repair from a stripped part. If you regularly work on both American and imported equipment, having a checker that covers both systems removes the uncertainty before it becomes a problem.
