Ever stripped a bolt trying to force the wrong nut onto it? Or spent 20 minutes at the hardware store holding up a screw next to every bin, hoping something matches? You're not alone. Mismatched threads are one of the most common — and most frustrating — mistakes in DIY repairs. The fix is simpler than you think: a thread gauge.
This guide walks you through everything you need to know about identifying screw and bolt thread sizes, using a bolt thread measurement tool correctly, and choosing the right fastener for any home repair job. Whether you're working with metric or imperial hardware, you'll never guess at thread sizes again. 🔩
What Is a Thread Gauge and Why Every DIYer Needs One

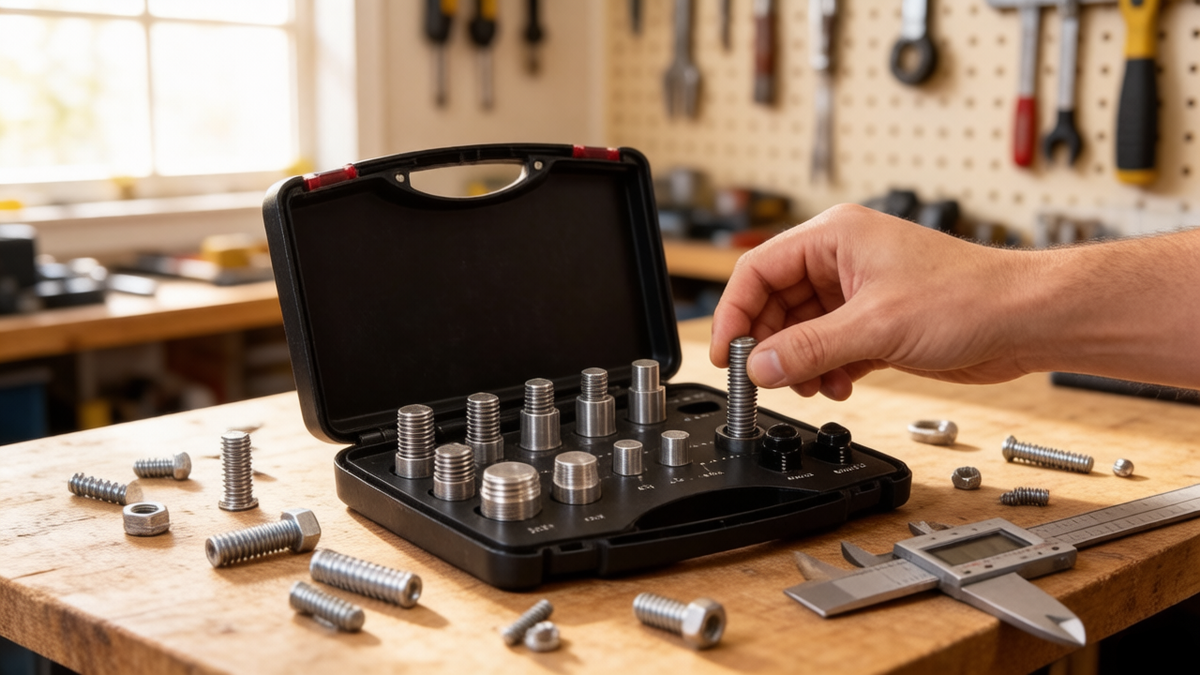

A thread gauge (also called a thread pitch gauge or screw pitch gauge) is a simple hand tool consisting of a series of metal leaves, each stamped with a specific thread profile. You fan out the leaves and press them against a screw or bolt thread until one fits perfectly — no gaps, no rocking. That leaf tells you the thread pitch.
Paired with a caliper to measure thread diameter, a thread gauge gives you the complete thread specification in under two minutes. For anyone who regularly works with screws, bolts, or machine screws, it's a $10–15 investment that pays for itself the first time it saves you a wasted trip to the hardware store.
Thread Gauge vs. Bolt Measurement Tool: What's the Difference?
- Thread pitch gauge: Measures thread pitch (distance between threads) only
- Caliper / bolt checker: Measures thread diameter (the width of the bolt shaft)
- Combined thread checker card: A flat plastic card with labeled holes for quick go/no-go diameter checks
- Thread identification kit: Includes pitch gauge + caliper + reference chart — the most complete option
Metric vs. Imperial Threads: Understanding the Difference
| Feature | Metric (ISO) | Imperial (UNC/UNF) |
|---|---|---|
| Designation | M + diameter (e.g., M6) | Diameter + TPI (e.g., 1/4"-20) |
| Pitch measurement | mm between threads | Threads Per Inch (TPI) |
| Common in | Electronics, imported tools, modern appliances | Plumbing, older US hardware, automotive |
| Example | M8 x 1.25 | 5/16"-18 UNC |
| Gauge type needed | Metric pitch gauge | Imperial (SAE) pitch gauge |
💡 Pro tip: Buy a dual metric/imperial thread gauge set. Most quality sets include both, and you'll encounter both systems in any American home built after 1980.
How to Read Thread Pitch and Diameter
Step 1: Measure the Thread Diameter
Use a digital caliper to measure the outer diameter of the bolt shaft (not the thread tips). For a metric bolt, this gives you the "M" number — a 6.0mm diameter = M6. For imperial, convert to fractions of an inch and match to standard sizes (0.25" = 1/4").
Step 2: Identify the Thread Pitch
Fan out your thread gauge leaves and press them one at a time against the bolt threads. The correct leaf will sit flush with zero gaps or wobble. Note the pitch value stamped on that leaf:
- Metric: Pitch in mm (e.g., 1.0, 1.25, 1.5)
- Imperial: TPI value (e.g., 18, 20, 24)
Step 3: Confirm with a Reference Chart
Cross-reference your diameter + pitch against a standard thread chart to confirm the full specification. For example: 6.0mm diameter + 1.0mm pitch = M6 x 1.0 (standard coarse thread).
Common Screw & Bolt Thread Sizes for Home Repairs
| Application | Common Metric Size | Common Imperial Size | Notes |
|---|---|---|---|
| Furniture assembly | M6 x 1.0, M8 x 1.25 | 1/4"-20 | Flat-pack furniture uses metric almost exclusively |
| Light fixtures | M4 x 0.7, M5 x 0.8 | #10-32 | Check fixture manufacturer specs |
| Deck & outdoor wood | M8 x 1.25, M10 x 1.5 | 5/16"-18, 3/8"-16 | Use stainless or hot-dip galvanized |
| Plumbing fittings | Rarely metric | NPT (pipe thread) | Pipe threads are tapered — different gauge needed |
| Electronics / appliances | M3 x 0.5, M4 x 0.7 | #6-32, #8-32 | Almost always metric on imported goods |
| Structural brackets | M10 x 1.5, M12 x 1.75 | 1/2"-13 | Always use grade 8 or A2/A4 stainless |
Step-by-Step: Matching the Right Thread for Your Project 🛠️
- Remove the original fastener if possible — always easier to match a physical sample than measure in place
- Clean the threads with a wire brush so the gauge seats properly — dirt and rust cause false readings
- Measure the diameter with a caliper — record to the nearest 0.1mm or 1/64"
- Identify the pitch with your thread gauge — try both metric and imperial leaves if unsure
- Confirm the length you need — measure the grip length and add thread engagement (typically 1.5x diameter for steel, 2x for aluminum)
Once you have diameter, pitch, and length, shop with confidence. Browse machine screws, bolts, and self-tapping screws by size at HomeDIYer.
Pro Tips to Avoid Cross-Threading ⚠️
- Start by hand, always: Never use a power driver to start a fastener. Thread by hand until you feel it catch smoothly, then drive
- Back off to find the start: Turn the bolt counterclockwise slowly until you feel a slight click — that's the thread start aligning. Then turn clockwise
- Keep it straight: Hold the fastener perpendicular to the hole. Even a 5° angle can cause cross-threading in fine-pitch threads
- Lubricate stainless threads: Stainless steel is prone to galling (thread seizure). Apply anti-seize compound or thread lubricant before installation
- Use a thread chaser: If threads are damaged, run a thread chaser or tap through the hole before installing a new fastener
- Don't over-torque: Tighten to spec — over-tightening stretches threads and makes future removal nearly impossible
When to Replace vs. Re-Use Fasteners
- ✅ Reuse if: Threads are clean, undamaged, and the fastener shows no corrosion or deformation
- ✅ Reuse if: It's a standard grade fastener in a non-critical application
- ❌ Replace if: Threads are visibly damaged, stretched, or corroded
- ❌ Replace if: It's a torque-to-yield bolt (single use only)
- ❌ Replace if: The fastener was previously over-torqued or shows necking
When replacing, always upgrade to stainless steel fasteners for outdoor or moisture-prone applications. Not sure which material to choose? See our Year-Round Fastener Care guide for a full material selection matrix.
