Every summer, thousands of canopies and event tents become airborne — damaging property, injuring people, and ruining outdoor events. The culprit is almost always the same: inadequate anchoring. A 10x10 canopy in a 30 mph gust generates over 500 lbs of uplift force. Most basic stake kits aren't designed for that. This guide covers the right anchor hardware and canopy wind resistant fasteners for every surface type. 🌬️
Understanding Wind Load: How Much Force Can Your Canopy Handle?
| Wind Speed | Condition | Uplift Force (10x10 Canopy) | Minimum Anchor Requirement |
|---|---|---|---|
| 10 mph | Light breeze | ~60 lbs | Basic stakes (4x) |
| 20 mph | Moderate wind | ~240 lbs | Heavy stakes or sandbags |
| 30 mph | Strong wind | ~540 lbs | Spiral anchors + guy wires |
| 40 mph | Near-gale | ~960 lbs | Take the canopy down |
Types of Ground Anchors for Tents and Canopies

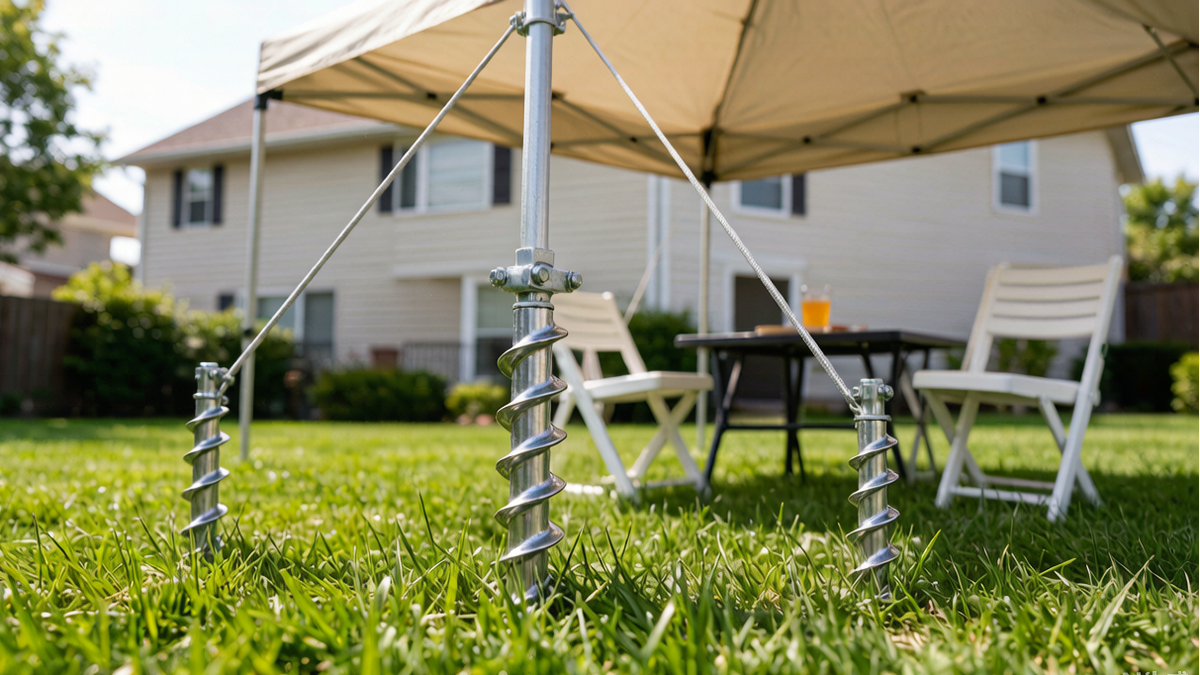

🌀 Spiral (Corkscrew) Anchors
The most effective ground anchor for soft surfaces. A 12" spiral anchor in firm soil can resist 300+ lbs of uplift. Twist in by hand or with a drill. Available in steel (standard) and stainless (coastal/wet environments).
🔨 Rebar Stakes
Simple and strong for firm soil. Drive 18"-24" rebar stakes at a 45° angle away from the canopy for maximum resistance. Not suitable for hard-packed clay or rocky soil.
🧱 Sandbags / Weight Bags
The go-to solution for hard surfaces (concrete, asphalt, pavers). A 40 lb sandbag per leg provides adequate resistance up to about 20 mph. For stronger winds, use two bags per leg or combine with guy wires.
🔩 Concrete Anchors
For permanent or semi-permanent canopy installations on concrete patios, expansion anchors drilled into the slab provide the strongest possible connection. Use M10 or M12 wedge anchors with a minimum 3" embedment depth.
How to Anchor a Canopy on Different Surfaces 📍
Grass / Soft Soil
Best option: 12" spiral anchors, one per leg. Drive at a slight angle away from the canopy. Connect to the canopy leg with a carabiner and guy wire for additional lateral stability.
Concrete / Asphalt
Option 1 (temporary): 40+ lb sandbags per leg, connected with ratchet straps to the canopy frame.
Option 2 (semi-permanent): Drill and install concrete expansion anchors, then attach canopy legs with stainless steel bolts and large washers.
Wooden Deck
Use lag screws or carriage bolts through the deck boards into the joists below. Install eye bolts or anchor plates, then connect canopy legs with carabiners and adjustable guy wires. Never screw directly into deck boards without hitting a joist.
Reinforcing Canopy Frame Joints with Fasteners 🔩
- Corner leg joints: Add M8 hex bolts with nyloc nuts through the existing holes in the connector — prevents the push-button from releasing under load
- Truss connections: Use M6 bolts with large fender washers to spread load across the truss plate
- Guy wire attachment points: Install M8 eye bolts through the frame at the top of each leg
- Foot plate connections: Secure to the ground anchor with M10 stainless bolts for a rigid connection
Emergency Fixes When Your Canopy Starts to Lift ⚠️
- Lower the canopy height immediately — a lower profile reduces wind load significantly
- Remove or roll up sidewalls — solid walls act as sails; open sides let wind pass through
- Add weight fast: Fill any available containers with water or sand and hang from the frame corners
- Take it down if winds exceed 35 mph — no anchor system is safe at that wind speed for a standard canopy
Related Guides
- 🔗 Labor Day Backyard Prep — full outdoor fixture hardware checklist
- 🔗 Outdoor Shed Assembly — permanent structure anchoring with concrete anchors
- 🔗 Year-Round Fastener Care — keep outdoor hardware rust-free all season
Frequently Asked Questions ❓
Q: How deep should spiral anchors go for a canopy?
For standard soft soil, a 12" spiral anchor provides adequate hold in winds up to 30 mph. For sandy or loose soil, use 18" anchors or double up with two per leg. Always test pull-out resistance by hand before the event — if you can pull the anchor out, the wind can too.
Q: Can I use regular bolts for canopy frame reinforcement?
For outdoor use, always use stainless steel or hot-dip galvanized bolts — standard zinc-plated hardware rusts quickly and can seize in the frame. HomeDIYer's bolt collection includes stainless options in the M6–M12 range most commonly used for canopy hardware.
Q: What's the best anchor for a concrete patio?
M10 or M12 wedge expansion anchors are the strongest option for concrete. Drill with a hammer drill and carbide bit, blow out the dust, and install per the anchor manufacturer's torque spec. Use HomeDIYer's anchor collection for a range of concrete anchor options.
Q: How quickly can I get anchors and fasteners from HomeDIYer?
Orders are produced in 1–2 business days and delivered in 3–7 business days. Hardware arrives in organized, clearly labeled packaging. Need help selecting the right anchor size? Contact our support team. See our returns & refund policy for peace of mind.
