If you've ever tightened a bolt to spec, only to find it loose again a week later, the problem probably isn't your torque — it's your fastener type. In high-vibration environments like engine bays, chassis brackets, and outdoor power equipment, standard hex bolts with separate washers are fighting an uphill battle. Flange bolts solve the problem by design.
This guide breaks down exactly how flange bolts work, why they outperform standard hex bolts in vibration-prone applications, and how to choose the right size for your repair.
What Is a Flange Bolt and How Does It Work

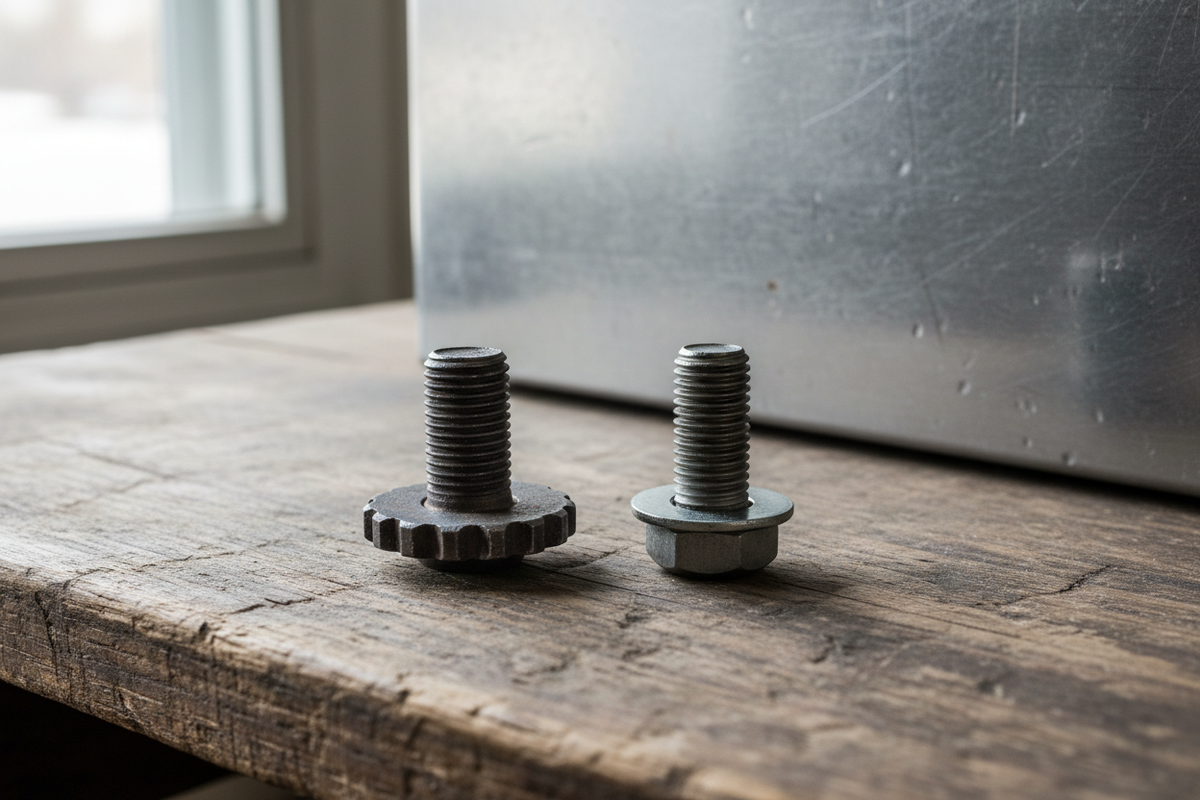

A flange bolt looks like a standard hex bolt, but with one important addition: a wide, circular flange integrated directly beneath the bolt head. That flange functions like a built-in washer — but it's machined as part of the bolt itself, not a separate component that can spin, migrate, or fall off during assembly.
The Flange Face: Load Distribution Explained
When you tighten a standard bolt with a washer, the clamping force is transmitted through the washer to the material surface. The washer distributes the load across its face area. A flange bolt does the same thing — except the flange is fixed to the bolt head, so it rotates with the bolt during tightening and seats evenly every time.
The flange face on most automotive and industrial flange bolts is significantly larger in diameter than the bolt head alone, spreading clamping load over more surface area and reducing the risk of the fastener embedding into or pulling through soft material.
Serrated vs. Non-Serrated Flange
Most flange bolts fall into two categories:
- Serrated flange bolts have teeth cut into the underside of the flange face. When tightened, these teeth bite into the mating surface and mechanically resist rotation — the primary anti-loosening feature.
- Non-serrated (smooth) flange bolts distribute load without the anti-rotation feature. Appropriate for softer materials or applications where the bolt needs frequent removal.
For high-vibration automotive and equipment applications, serrated flange bolts are the standard choice.
How Flange Geometry Prevents Washer Spin-Out
In high-vibration environments, a loose washer can migrate away from its original position or fall out entirely. Because the flange is integral to the bolt, this failure mode doesn't exist.
Flange Bolt vs. Standard Hex Bolt — Side-by-Side Comparison
Clamping Surface Area
A standard M8 hex bolt head has a bearing surface of approximately 150–170 mm². A typical M8 flange bolt's bearing surface is 300–400 mm² — roughly double. More bearing surface means lower pressure per unit area, which reduces surface indentation and improves long-term clamping force retention.
| Feature | Flange Bolt | Hex Bolt + Washer |
|---|---|---|
| Washer required | No | Yes |
| Vibration resistance | High (serrated) | Moderate |
| Risk of washer migration | None | Present |
| Torque consistency | Higher | Variable |
| Component count | 1 | 2–3 |
When a Standard Hex Bolt Is Still the Right Choice
Use a standard hex bolt when you need a large-diameter washer for oversized clearance holes, when the flange OD creates clearance problems, or when the application requires a specific washer material like nylon isolation or hardened plate.
Do You Need a Washer with a Flange Bolt
In most cases, no. Exceptions include non-serrated flanges on soft materials (where a flat washer can prevent surface marking) and serrated flanges on coated surfaces (where the teeth will damage powder coat or anodizing).
Rule of thumb: structural or vibration application on bare or painted metal — serrated flange bolt, no washer. Isolation-sensitive application — non-serrated flange bolt, optional flat washer.
Flange Bolt Torque Specs
Flange bolt torque values are typically 5–10% higher than equivalent standard bolt torque, compensating for additional under-head friction from the larger flange. For grade 8.8 metric flange bolts with coarse thread, lightly oiled:
| Thread Size | Torque (Nm) | Torque (ft-lb) |
|---|---|---|
| M6 | 10–12 Nm | 7–9 ft-lb |
| M8 | 24–28 Nm | 18–21 ft-lb |
| M10 | 48–55 Nm | 35–41 ft-lb |
| M12 | 84–96 Nm | 62–71 ft-lb |
Why Under-Torquing a Flange Bolt Is Worse
A serrated flange bolt's anti-loosening benefit depends on the serrations fully engaging under clamp load. Under-torquing prevents full serration engagement and negates the anti-vibration function. Always use a torque wrench.
Real Application Scenarios
Engine Mounts and Exhaust Manifolds
Flange bolts are standard OEM hardware for engine mount bracket attachment in most Japanese and European vehicles. For exhaust applications, use grade 10.9 or higher and apply anti-seize to the threads — not the flange face.
Suspension Brackets and Chassis Crossmembers
Crossmember-to-frame bolts experience both vibration and dynamic load reversal. Serrated flange bolts are preferred over standard hex + lock washer here — the lock washer can flatten over time, while the serrated flange retains its anti-rotation feature throughout service life.
Sheet Metal Assemblies and Body Panels
Flange bolts bridge the gap between a pilot hole and a panel. The large bearing surface prevents pull-through in thinner gauge sheet metal without requiring a backup washer.
Agricultural and Outdoor Power Equipment
Lawn tractors, tillers, and brush cutters generate low-frequency, high-amplitude vibration — exactly the condition where standard bolts back out fastest. Flange bolts are common factory hardware on deck mounting brackets and blade assemblies.
How to Choose the Right Flange Bolt Size
Matching Thread Pitch
Verify thread pitch, not just diameter. An M8 coarse thread (1.25mm pitch) will not seat correctly in an M8 fine thread (1.0mm pitch) hole. Use a thread pitch gauge to confirm.
Flange OD Clearance
The flange diameter on a typical M8 flange bolt is 17–18mm. Verify this OD clears any counterbore or adjacent feature in your application.
Grade Selection
- Grade 8.8: General-purpose structural and automotive applications
- Grade 10.9: High-load applications, suspension, drivetrain hardware
- Grade 12.9: Highest load density; not typically needed for most repair work
FAQ
Is a serrated flange bolt the same as a lock bolt? No. A lock bolt is a two-piece swaged fastener. A serrated flange bolt is a standard threaded fastener with teeth on the flange underside.
Can I reuse a serrated flange bolt after removal? Not recommended for critical applications. The serrations deform on first installation. Replace in any safety-critical joint.
What grade are most automotive flange bolts? Typically grade 8.8 or 10.9, depending on application. Check the bolt head markings.
How do I remove a flange bolt with a stripped head? Use a bolt extractor socket or left-hand drill bit. A cut-off wheel can slot the head in tight spaces.
Can I use flange bolts in aluminum? Use non-serrated flange bolts to prevent galling. Apply anti-seize to the threads and torque to the lower end of the specified range.
Wrapping Up
Flange bolts aren't a specialized product — they're the right tool for a problem that standard hex bolts routinely fail to solve in vibration-heavy applications. If bolts are backing out on your engine, suspension, or outdoor equipment, switching to serrated flange bolts addresses the root cause rather than treating the symptom.
For automotive, chassis, and equipment repairs across M6, M8, and M10 sizes, the M6/M8/M10 flange bolt kit (549pcs) covers the most common thread sizes in one sorted kit.
