⚡ Quick Takeaways
- PVC fittings are categorized by the number of connection ports: elbow (2), tee (3), cross (4), and 5-way connectors.
- Solvent weld fittings create a permanent, leak-proof bond — measure twice before gluing.
- Always match fitting size to pipe OD (outer diameter), not ID (inner diameter).
- PVC is suitable for aquariums, greenhouses, garden irrigation, and low-pressure plumbing — not for hot water, compressed air, or high-pressure systems.
Why PVC Fittings Confuse So Many DIYers
Walk into any hardware store and the PVC fittings aisle can feel overwhelming. Elbows, tees, crosses, reducers, caps, couplings — and then the multi-way connectors that look like something from a plumbing fever dream. The good news: once you understand the logic behind the naming system, selecting the right fitting becomes straightforward. This guide covers everything from basic elbow types to 5-way connectors, with size guidance for the most common DIY applications.

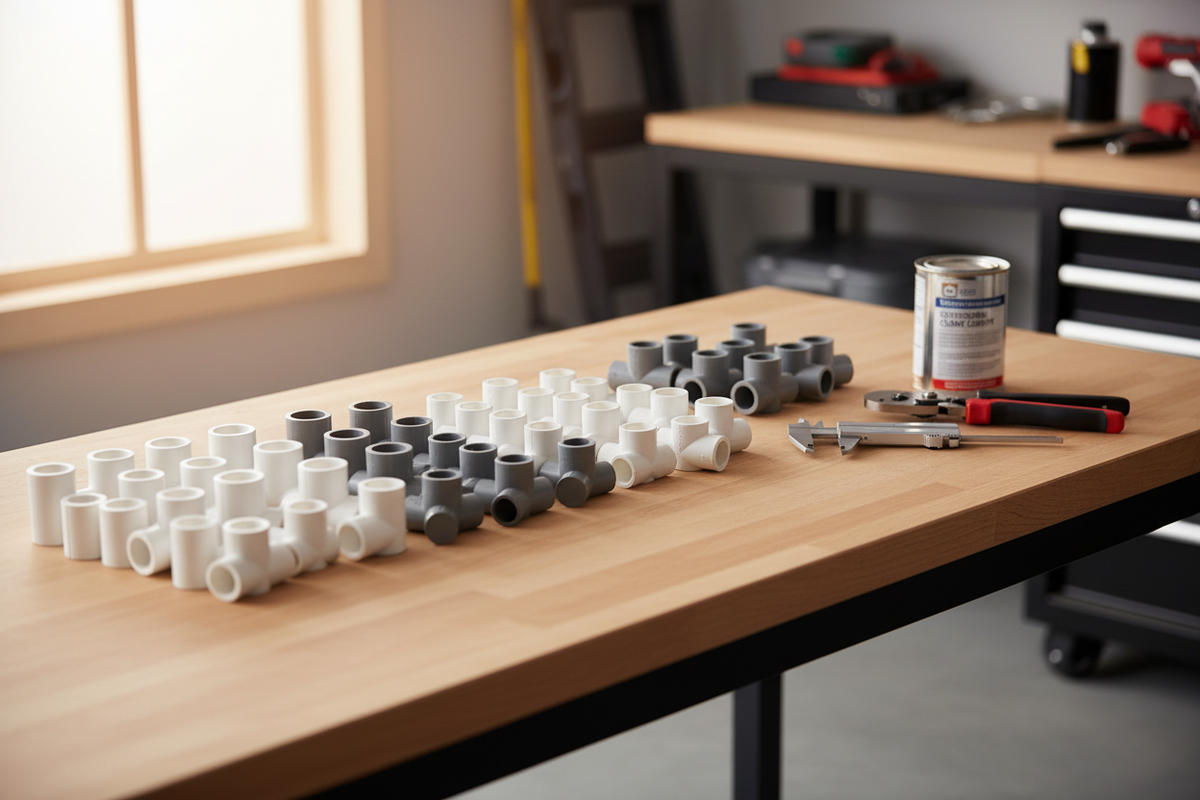

PVC Fitting Types: The Complete Breakdown
Elbow Fittings (2-Port)
Elbows change the direction of a pipe run. The two most common angles are:
- 90° Elbow — Makes a sharp right-angle turn. Used when you need to route pipe around a corner or change direction completely.
- 45° Elbow — Makes a gentler directional change. Preferred in drainage applications because it reduces flow restriction compared to a 90° bend.
For aquarium sumps, greenhouse frames, and garden irrigation, 90° elbows from the 20–50mm PVC Fittings range are the most commonly used connector type.
Tee Fittings (3-Way)
A tee fitting splits one pipe run into two, or combines two runs into one. The standard tee has one inlet and two outlets at 90° to each other. A reducing tee has outlets of different diameters — useful when branching to a smaller pipe for a secondary line.
Cross Fittings (4-Way)
A cross fitting has four ports at 90° intervals — think of a plus sign (+). Used in grid-style irrigation systems, aquarium manifolds, and greenhouse frame intersections where four pipes meet at a single point.
5-Way Fittings
Five-way connectors add a fifth port, typically perpendicular to the plane of the four-way cross. These are most commonly used in 3D pipe frame structures — greenhouse corner joints, modular shelving, and custom PVC furniture frames where pipes connect on multiple axes.
Solvent Weld vs. Push-Fit: Choosing the Right Connection Method
| Feature | Solvent Weld | Push-Fit |
|---|---|---|
| Bond type | Chemical fusion (permanent) | Mechanical seal (removable) |
| Strength | Extremely high — stronger than pipe | Moderate — suitable for low pressure |
| Installation | Requires primer + cement, 24hr cure | Push and click — instant |
| Disassembly | Not possible without cutting | Easy — press release collar |
| Best for | Permanent plumbing, aquariums | Temporary setups, prototyping |
| Leak risk | Near zero when done correctly | Higher under vibration or pressure |
The solvent weld PVC fittings in the 20–50mm range are designed for permanent installations. Once the solvent cement cures, the joint is chemically fused — the pipe and fitting become a single piece of plastic.
🔧 Pro Tip: Always dry-fit your entire assembly before applying solvent cement. Once you apply cement and push the fitting home, you have about 30 seconds to make final adjustments before the bond sets.
PVC Pressure Ratings: Schedule 40 vs. Schedule 80
Not all PVC pipe is rated for the same pressure. The two most common schedules for DIY use are:
| Schedule | Wall Thickness | Pressure Rating (1" pipe, 73°F) | Color | Best For |
|---|---|---|---|---|
| Schedule 40 | Standard | ~450 psi (31 bar) | White or gray | Irrigation, drainage, aquariums, low-pressure plumbing |
| Schedule 80 | Thicker | ~630 psi (43 bar) | Gray | Higher-pressure applications, industrial use |
Important: Pressure ratings decrease significantly as temperature increases. At 140°F (60°C), Schedule 40 PVC retains only about 22% of its room-temperature pressure rating. Never use standard PVC for hot water lines.
⚠️ Safety Warning: Never use PVC pipe or fittings for compressed air systems. PVC can shatter catastrophically under air pressure, sending sharp plastic fragments at high velocity. Use only rated metal or nylon air line fittings for compressed air.
PVC Pipe Size Guide: How to Measure Correctly
PVC fittings are sized by the pipe's outer diameter (OD). Always measure the pipe OD with a caliper — not the inner diameter — when selecting fittings. Note that in the US market, nominal pipe size (NPS) does not equal OD for sizes below 14"; the metric sizing used in this guide (where nominal = OD) applies to metric-standard PVC commonly used in aquarium, greenhouse, and irrigation applications.
| Nominal Size | Outer Diameter (OD) | Common Application |
|---|---|---|
| 20 mm | 20 mm | Aquarium tubing, small irrigation |
| 25 mm | 25 mm | Garden irrigation, greenhouse frames |
| 32 mm | 32 mm | Drainage, medium irrigation |
| 40 mm | 40 mm | Drainage, pool plumbing |
| 50 mm | 50 mm | Main drainage lines, large aquariums |
| 63–110 mm | 63–110 mm | Sewer, stormwater, large drainage |
For larger diameter applications, the PVC drain pipe connectors and reducer adapters cover sizes up to 110 mm and include inspection ports for maintenance access.
How to Cut and Join PVC Pipe Without Leaks
Step 1 — Cut Square
Use a pipe cutter or miter saw to make a clean, square cut. An angled cut reduces the gluing surface and increases leak risk. Deburr the cut end with sandpaper or a deburring tool.
Step 2 — Dry Fit the Assembly
Assemble the entire run without cement. Mark alignment with a pencil across each joint so you can quickly orient fittings correctly when working with cement.
Step 3 — Apply Primer
PVC primer softens the pipe surface and prepares it for chemical bonding. Apply to both the pipe end and the fitting socket. Allow 15–30 seconds to flash off. Primer is required for pressure applications and strongly recommended for all permanent installations.
Step 4 — Apply Solvent Cement and Assemble
Apply cement to both surfaces. Push the pipe into the fitting with a slight twisting motion (about 1/4 turn) to distribute cement evenly. Hold for 30 seconds. A small bead of cement around the joint perimeter indicates full coverage.
Step 5 — Cure Time
Allow 1 hour before handling and 24 hours before pressure testing. Temperature affects cure time — cold conditions (below 40°F / 4°C) require longer cure periods and a low-temperature cement formulation.
Common DIY Applications by Fitting Type
| Application | Fittings Needed | Recommended Size |
|---|---|---|
| Aquarium sump plumbing | Elbows, tees, ball valves | 20–32 mm |
| Greenhouse frame | Elbows, tees, 4-way, 5-way | 25–32 mm |
| Garden drip irrigation | Tees, elbows, end caps | 20–25 mm |
| Workshop dust collection | Elbows, tees, reducers | 50–63 mm |
| Drainage / sewer | Elbows (45°), tees, inspection ports | 50–110 mm |
| PVC furniture / shelving | Elbows, tees, 4-way, 5-way | 25–40 mm |
For colorful aquarium or decorative builds, the PVC round pipe in 13 colors (OD 20–110 mm) pairs directly with standard solvent weld fittings and lets you color-code systems or match aesthetics.
What PVC Is Not Suitable For
- Hot water lines — Standard PVC softens above 60°C (140°F). Use CPVC or copper for hot water.
- High-pressure systems — Verify pressure rating for your schedule and pipe size before use in pressurized applications.
- Compressed air — PVC can shatter under compressed air. Use rated metal or nylon air line fittings.
- Solvent or chemical lines — Many solvents attack PVC. Check chemical compatibility before use.
Final Thoughts
PVC fittings follow a logical system once you understand the port-count naming convention and the difference between solvent weld and push-fit connections. Whether you're building a greenhouse frame, plumbing an aquarium sump, or running a garden irrigation system, the right combination of elbows, tees, and multi-way connectors from the 20–50mm PVC fittings range will handle the job.
Frequently Asked Questions
Can I use PVC fittings for drinking water?
Only if the fittings are specifically rated as NSF-61 certified for potable water. Standard PVC fittings used for irrigation, aquariums, or drainage are not certified for drinking water contact. Check the fitting markings or product specifications before using in any potable water application.
What's the difference between PVC and CPVC?
CPVC (Chlorinated PVC) is formulated to withstand higher temperatures — up to 93°C (200°F) compared to standard PVC's 60°C (140°F) limit. CPVC is used for hot water distribution lines where standard PVC would soften and fail. The two materials are not interchangeable — CPVC requires its own cement formulation.
How long does PVC solvent cement take to fully cure?
Initial set occurs within 30 seconds of assembly. The joint can be handled after 1 hour. Full cure for pressure testing requires 24 hours at temperatures above 60°F (15°C). In cold conditions (below 40°F / 4°C), allow 48–72 hours and use a low-temperature cement formulation.
Can I glue PVC fittings without primer?
For non-pressure applications (drainage, greenhouse frames, aquarium structures), primer is optional but recommended. For any pressurized application — irrigation, pool plumbing, or water supply — primer is required to achieve a reliable bond. Skipping primer on pressure lines significantly increases the risk of joint failure.
What size PVC pipe do I need for a greenhouse frame?
25 mm (1") PVC pipe is the most common choice for small to medium greenhouse frames — it's rigid enough to support poly film or shade cloth without excessive flex, and lightweight enough to handle easily. For larger structures or heavy coverings (polycarbonate panels), use 32 mm pipe and increase the number of support hoops.
