Introduction
Welcome to your comprehensive guide on double cone springs! Whether you're an engineer, a hobbyist, or a Home DIYer tackling a project, understanding these unique components can unlock new solutions for your designs. This blog post will delve into everything you need to know about Double Cone Springs, from their fundamental principles and diverse applications to their key benefits. We'll provide practical advice on how to choose the right one, discuss important factors like dimensions, and even explore affordable options for DIY projects. By the end, you'll be equipped to confidently select and utilize these versatile mechanical springs.

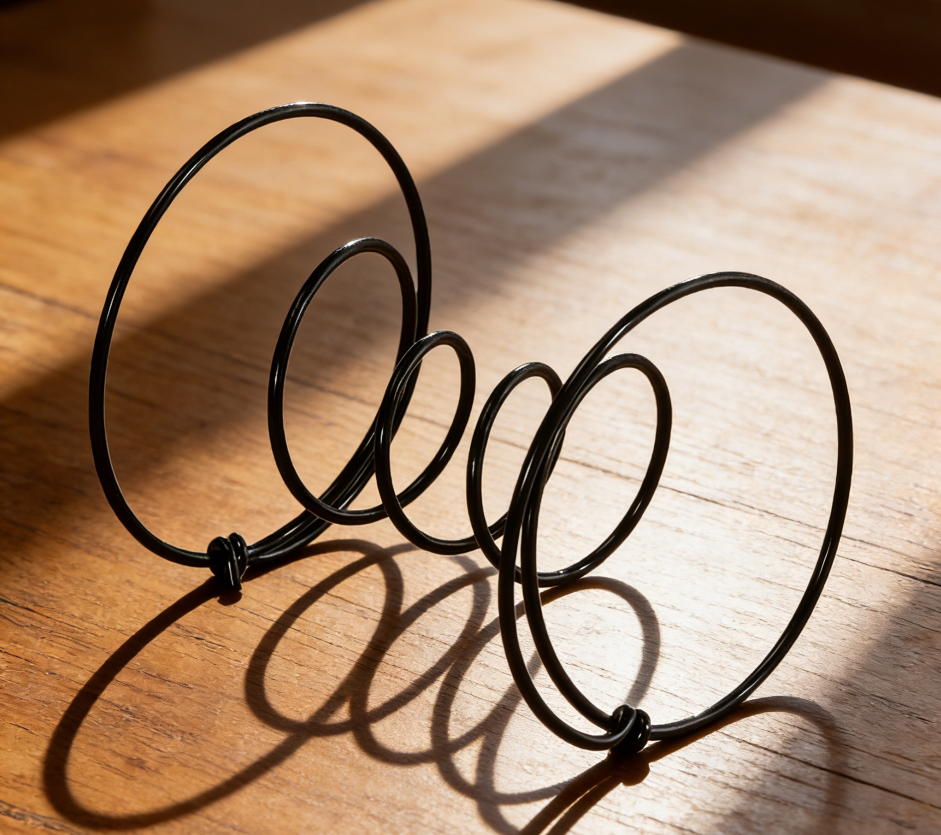

What Are Double Cone Springs?
Double Cone Springs, also known as double cone compression springs, are a specialized type of compression spring. Unlike standard cylindrical springs, they are shaped like two cones joined at their bases, forming an hourglass-like profile. This distinctive geometry gives them unique mechanical properties that make them suitable for applications where space is constrained or a non-linear force-deflection characteristic is desired.
Their design allows for a compact solid height—the height when the spring is fully compressed—which can be a critical advantage in tight assemblies. When considering double cone spring dimensions, the tapered design enables progressive compression characteristics that differ significantly from standard springs.
Key Benefits and Advantages
Why choose a double cone spring over other types? Here are their primary benefits:
- Compact Solid Height: Their tapered design allows them to telescope into themselves when compressed, resulting in a very low solid height. This is perfect for applications with severe axial space limitations.
- Non-Linear Force Curve: They can provide a progressive or regressive spring rate, meaning the force increases at a non-constant rate as the spring is compressed. This can be engineered to achieve specific load-bearing behaviors.
- High Energy Storage: The efficient use of material in their shape allows them to store and release a significant amount of energy relative to their size.
- Stability: The conical shape offers better lateral stability compared to some standard compression springs, reducing buckling risk.
Common Double Cone Spring Applications
The unique properties of double cone compression springs make them invaluable across various industries. Here are some key applications:
- Automotive Industry: Used in clutch assemblies, suspension systems, and vibration dampers where space is premium and specific damping characteristics are needed.
- Aerospace: Employed in landing gear and control systems for their reliability and compactness under high load.
- Industrial Machinery: Ideal for heavy-duty presses, valves, and shock absorbers that require high force in a confined space.
- Medical Devices: Found in surgical tools and adjustable equipment where precise, space-saving force application is critical.
- Consumer Electronics: Used in connectors, battery contacts, and haptic feedback mechanisms.
For Home DIYer enthusiasts, these springs can be found in specialty tools, advanced furniture mechanisms, and custom automotive projects. Exploring our collection of mechanical springs can give you more ideas for your next project.
How to Choose the Right Double Cone Spring
Selecting the correct Double Cone Springs involves considering several technical and practical factors. Use the following table as a quick-start guide:
| Consideration | Description | Why It Matters |
|---|---|---|
| Load Requirements | The force the spring needs to exert or absorb at various deflections | Ensures the spring performs its intended function without failing |
| Deflection/Stroke | The distance the spring needs to compress or extend during operation | Must match the available space and movement in your assembly |
| Spring Rate | The change in force per unit of deflection (e.g., N/mm) | Determines how "stiff" or "soft" the spring feels |
| Double Cone Spring Dimensions | Outer/Inner diameters, wire thickness, free height, and solid height | Must fit physically within your design constraints |
| Material | Common materials include music wire, stainless steel, or oil-tempered wire | Affects corrosion resistance, temperature tolerance, and durability |
| Operating Environment | Exposure to moisture, chemicals, or extreme temperatures | Dictates material choice and potential need for coatings |
Step-by-Step Selection Process
- Define Your Space: Measure the available installation space carefully, focusing on the bore/rod diameters and the maximum allowable compressed height.
- Calculate Loads: Determine the initial, working, and maximum loads your application requires.
- Determine Motion: Identify the necessary deflection or travel distance.
- Consider Environment: Note any factors like humidity or temperature extremes.
-
Prototype and Test: Whenever possible, test a sample spring in your application to verify performance.
Finding Affordable Double Cone Springs for Home DIYer Projects
For hobbyists and Home DIYer tinkerers, sourcing specialized components can seem daunting. The key is to look for suppliers that cater to both industrial and consumer markets. Many online retailers, including Home DIYer, offer small quantities perfect for prototype or one-off projects.
When searching for affordable double cone springs for Home DIYer projects, prioritize suppliers with clear pricing, detailed specifications, and positive reviews about product quality and customer service. You can start your search on our general springs page to see what's available for your specific needs.
Remember, when working on DIY projects involving cone spring applications, always consider:
- Exact dimensional requirements
- Load capacity needed
- Environmental conditions
- Budget constraints
- Future availability for replacements
FAQ: Your Double Cone Spring Questions Answered
Conclusion and Next Steps
Double Cone Springs are powerful, compact components that solve unique engineering challenges. By understanding their benefits, applications, and how to interpret dimensions, you can make an informed choice for your next project.
From industrial cone spring applications to affordable double cone springs for Home DIYer projects, these versatile components offer solutions where traditional springs fall short. Whether you need precise double cone spring dimensions for an engineering project or reliable double cone compression springs for your workshop, the right selection makes all the difference.
